REPRESENTATIVE IMAGE

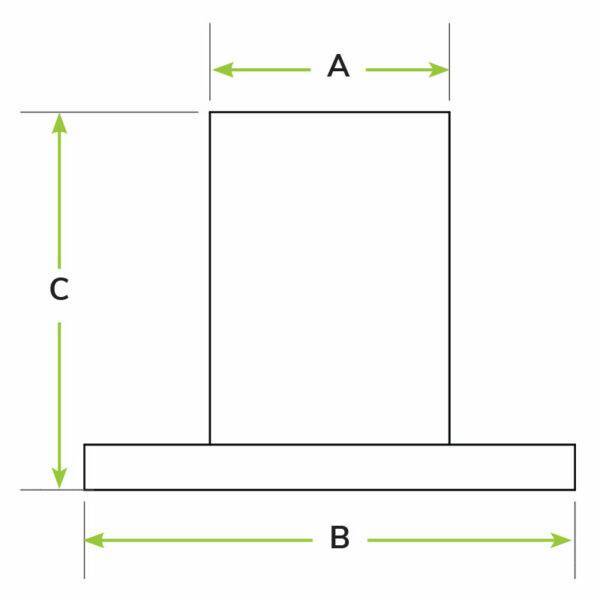

Attributes

A 16
B 20.08
C 3.94
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LFB400-1600-HN-3.94

ISO-LFB400 Half Nipple, 16 in. ID

Request a Quote for Price

Available on backorder

Part ID: 4500169

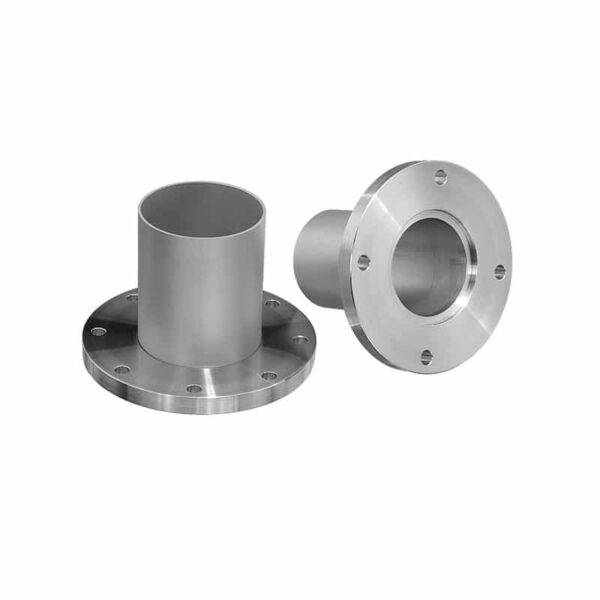

Half nipples are manufactured with a flange on one end and raw tubing on the other. They are often welded onto a custom vacuum system or instrument by a customer with in-house welding capabilities. They can also be used with quick connection fittings to make a vacuum tight connection without welding.

Features

  • High Vacuum Rated to 1×10-8 Torr
  • Bakeable to 200°C
  • Compatible with all ISO standard vacuum flanges and fittings
  • Quick sealing and disassembly
  • Butt weld
  • Designed to fit standard inch tubing O.D.’s
  • Highly customizable

Specifications

  • Materials:
  • Standard:
    • Flanges: 304L Stainless Steel
    • Fitting: 304 Stainless Steel
    • 316 Stainless Steel
    • 6061 Aluminum
