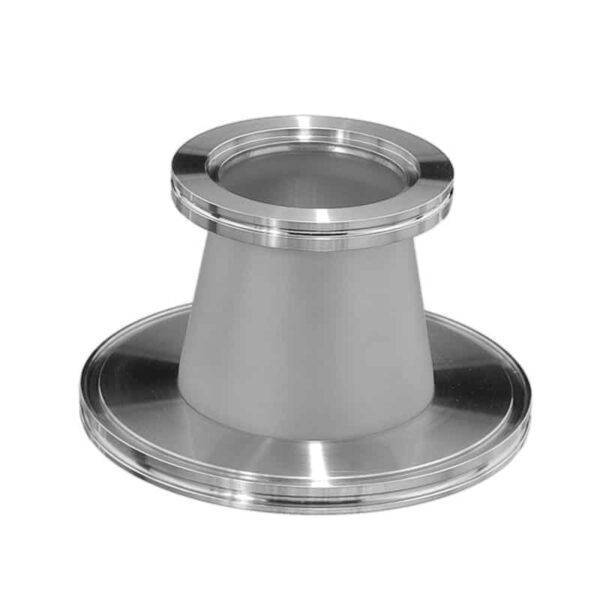

REPRESENTATIVE IMAGE

Attributes

A 4.12
B 3.83
C 2.37
Flange 1 LF100
Flange 2 LF63
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF100XLF63-400X250-CR-4.12

ISO LF100/LF63 Conical Reducer Nipple

$285.00

Available on backorder

Part ID: 4500248


Materials

  • Standard:
    • Flanges: 304L Stainless Steel
    • Fitting: 304 Stainless Steel
  • Alternative: 6061 Aluminum (Contact us for price and delivery)

Product Features

  • High Vacuum Rated to 1×10-8 Torr
  • Bakeable to 200°C
  • Quick sealing and disassembly

Product Notes

  • Connects different ISO-LF sizes
  • Increased conductance with a conical reducer nipple

Options (Contact us for price and delivery)

  • Custom lengths
  • Larger sizes
  • Custom flange combinations
  • ISO-QF large flange sizes
  • ISO-LFB flanges
  • Tapped bolt holes
