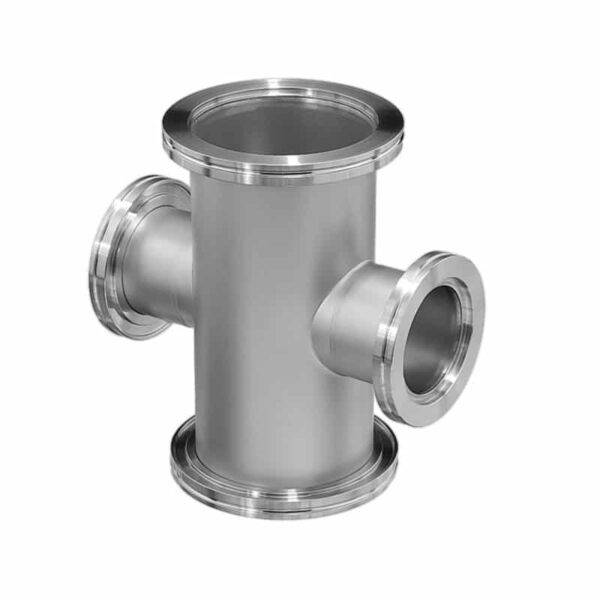

REPRESENTATIVE IMAGE

Attributes

A3.5
B3.5
Flange 3LF63
Tube O.D.2.5
Flange 1 & 2LF80
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF80XLF63-300X250-R4X-3.50X3.50

ISO-LF80/ISO-LF63 Reducer Cross

Part ID: 4500450
$540.60
Standard Lead Time:
Contact
Available on backorder


Crosses accommodate junctions or alignment considerations for a vacuum system design. Crosses are also used as junction adapters between different tubing sizes or flange types.
Features
  • High Vacuum Rated to 1×10-8 Torr
  •  Bakeable to 200°C
  • Quick sealing and disassembly
  • Pulled ports for optimal vacuum performance
  • Reducing intersection for different ISO-LF flange sizes
Specifications
  •  Materials:
  •  Flanges: 304L Stainless Steel
  •  Fitting: 304 Stainless Steel
  •  Alternative: 6061 Aluminum
