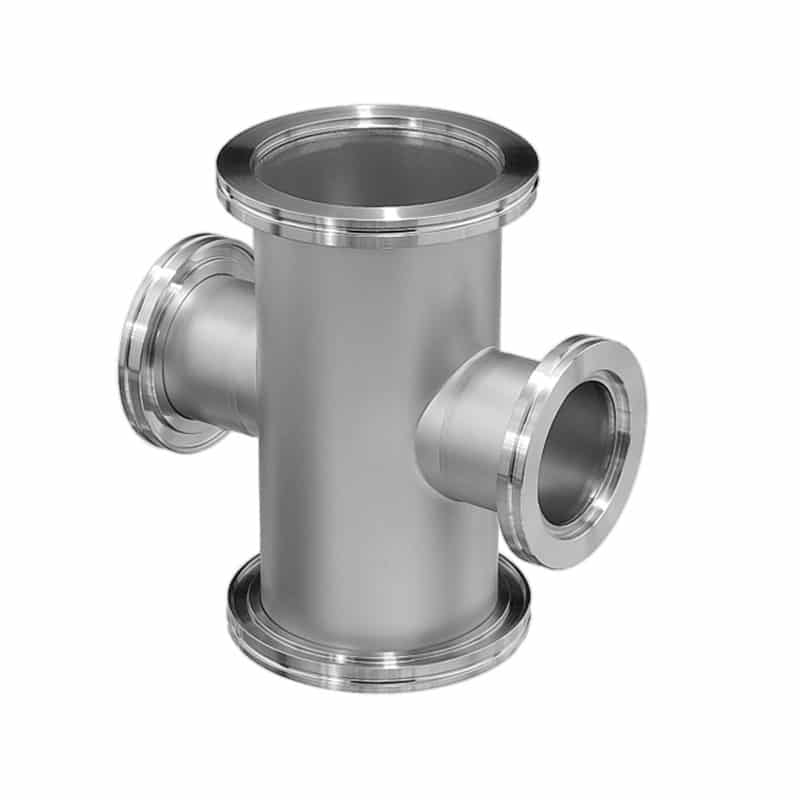

REPRESENTATIVE IMAGE

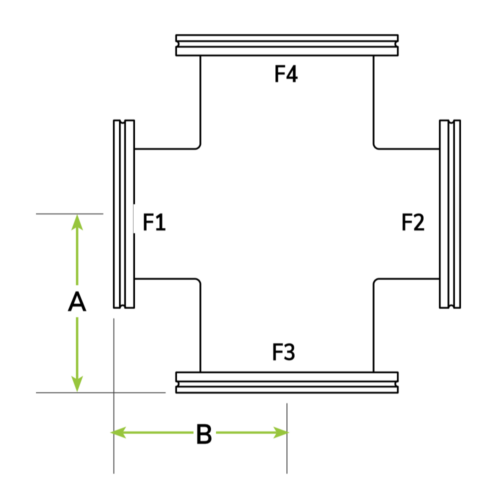

Attributes

A 4.13
B 4
Flange 3 LF80
Tube O.D. 3
Flange 1 & 2 LF100
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF100XLF80-400X300-R4X-4.13X4.00

ISO-LF100/ISO-LF80 Reducer Cross

$735.00

Available on backorder

Part ID: 4500452


Crosses accommodate junctions or alignment considerations for a vacuum system design. Crosses are also used as junction adapters between different tubing sizes or flange types.

Features

  • High Vacuum Rated to 1×10-8 Torr
  • Bakeable to 200°C
  • Quick sealing and disassembly
  • Pulled ports for optimal vacuum performance
  • Reducing intersection for different ISO-LF flange sizes

Specifications

  • Materials:
  • Flanges: 304L Stainless Steel
  • Fitting: 304 Stainless Steel
  • Alternative: 6061 Aluminum
