• 4500110
  • 4500110

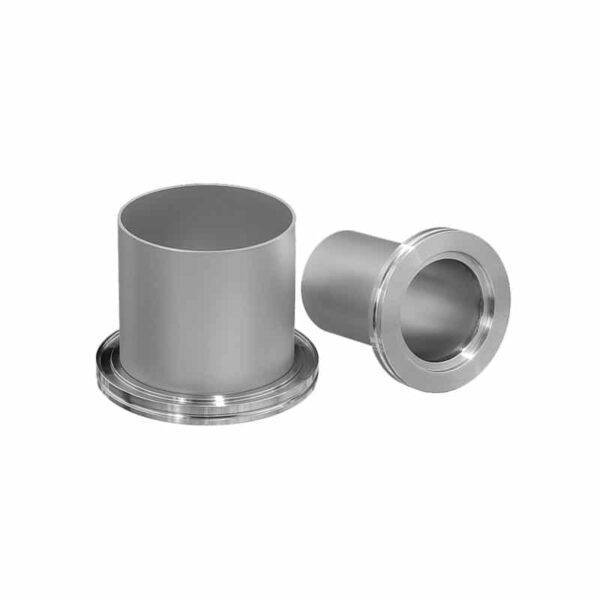

REPRESENTATIVE IMAGE

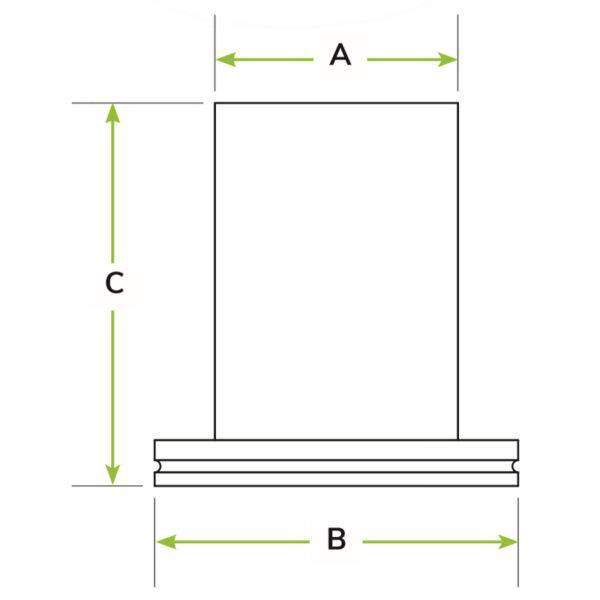

Attributes

A 2.5
B 3.94
C 3.74
Material 316 SS
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF63-250-HN-3.94-316

ISO-LF63 Half Nipple 2 1/2 in. ,316SS

$0.00

Available on backorder

Part ID: 4503110









Half nipples are manufactured with a flange on one end and raw tubing on the other. They are often welded onto a custom vacuum system or instrument by a customer with in-house welding capabilities. They can also be used with quick connection fittings to make a vacuum tight connection without welding.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Bakeable to 200°C
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  • Quick sealing and disassembly
    •

  •  Butt weld
    •

  • Designed to fit standard inch tubing O.D.’s
    •

  • Highly customizable
    •









Specifications






  •  Materials:
    •





  •  Standard:
    •



    •  Flanges: 304L Stainless Steel
      •

    •  Fitting: 304 Stainless Steel
      •

    •  316 Stainless Steel
      •






























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

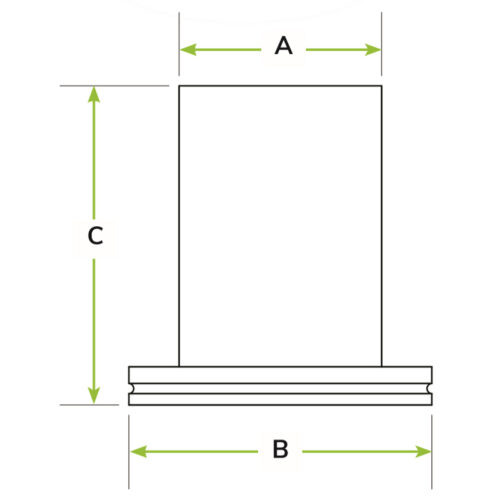

Attributes




















                    A 2.5



                    B 3.94



                    C 3.74



                    Material 316 SS



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
