Attributes

A 2.12
B 0.63
C 0.76
D 0.47
E 0.17
F 1.63
Thrd 1/4-28
Flange Style Fixed
Bolt Hole Style Tapped
Bolt Hole Number 4
3D CADLogin
DrawingLogin

CF212T-075

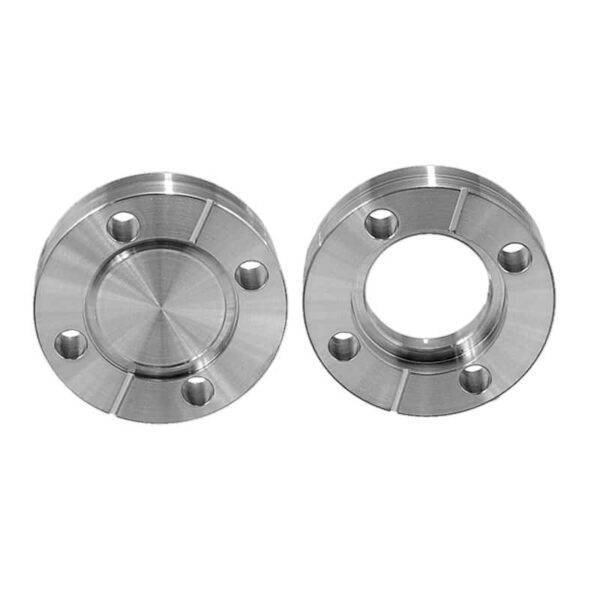

CF212 Fixed Flanges 0.63″ ID – Tapped

$39.00

Part ID: 5000044


2.125 inch outer diameter ConFlat non-rotatable flanges ideal for UHV applications.


Materials:

  • 304L stainless steel



Product Notes:

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-holes) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1x10-9 std. cc/s helium



Options: Contact us for price and availability

  • Metric tapped bolt holes
  • Alternative materials: 316L stainless steel, aluminum, etc.
