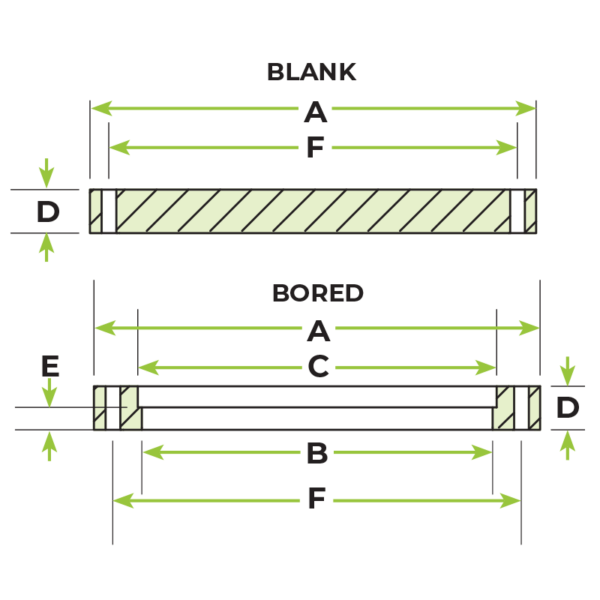

Attributes

A 2.72
B 1.13
C 1.26
D 0.50
E 0.21
F 2.31
Thrd 0.27
Flange Style Fixed
Bolt Hole Style Clearance
Bolt Hole Number 6
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF275-125

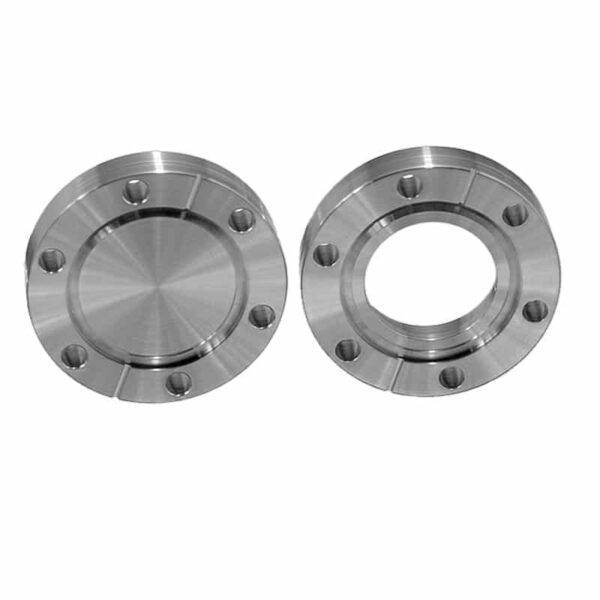

304L SS 2.75 in. (DN 40) Fixed ConFlat Flanges with 1 1/4 in. Inner Diameter, Clearance Bolt Holes

$17.00

Available on backorder

Part ID: 5000061


2.75 inch outer diameter ConFlat non-rotatable flanges ideal for UHV applications.

Features

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-holes) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available

Specifications

  • Flange Material: 304L Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-9 std. cc/s helium
