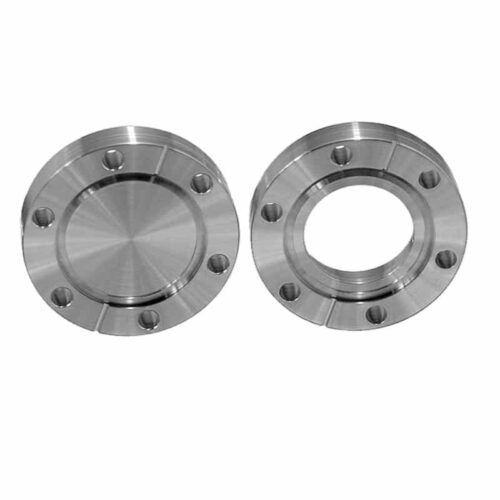

REPRESENTATIVE IMAGE

Attributes

A 2.72
B 0.51
C -
D 0.50
E -
F 2.31
Thrd 1/4-28
Flange Style Fixed
Bolt Hole Style Tapped
Bolt Hole Number 6
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF275T-050

304L SS 2.75 in. (DN 40) Fixed ConFlat Flanges with 1/2 in. Inner Diameter, Tapped Bolt Holes

Original price was: $35.00.Current price is: $26.25.

Your Price

4 in stock (can be backordered)

Part ID: 5000066









2.75 inch outer diameter ConFlat non-rotatable flanges ideal for UHV applications.




 Features






  •  Designed to fit standard inch tubing O.D.’s
    •

  •  Self-aligning
    •

  •  Internal weld
    •

  •  Sexless flanges
    •

  •  Tapped and clearance (through-holes) bolt holes available
    •

  •  Blank flanges close unused ports or custom modify
    •

  • Interchangeable with other ConFlat style flanges
    •

  •  Adapters to other flange systems available
    •









 Specifications






  •  Flange Material: 304L Stainless Steel
    •

  •  Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  •  Temperature range: -200°C up to 450°C
    •

  •  Leak rating < 1×10-9 std. cc/s helium
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 2.72



                    B 0.51



                    C -



                    D 0.50



                    E -



                    F 2.31



                    Thrd 1/4-28



                    Flange Style Fixed



                    Bolt Hole Style Tapped



                    Bolt Hole Number 6



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
