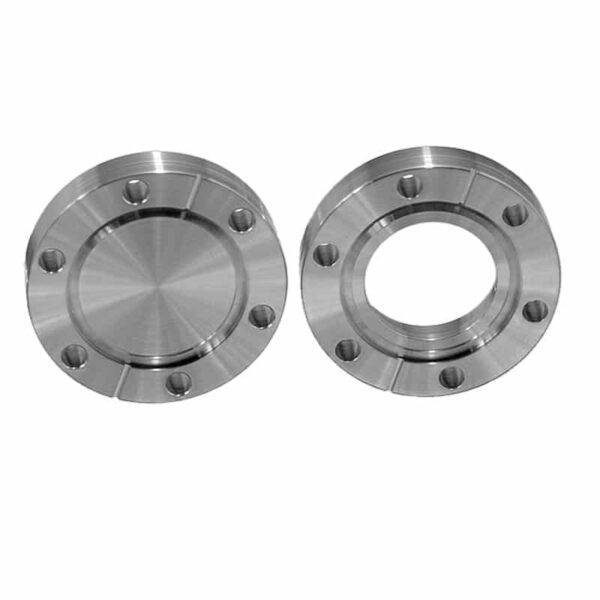

REPRESENTATIVE IMAGE

Attributes

A2.72
B0.88
C1.01
D0.50
E0.21
F2.31
Thrd1/4-28
Flange StyleFixed
Bolt Hole StyleTapped
Bolt Hole Number6
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF275T-100

304L SS 2.75 in. (DN 40) Fixed ConFlat Flanges with 1 in. Inner Diameter, Tapped Bolt Holes

Part ID: 5000068
$26.50
1 in stock (can be backordered)


2.75 inch outer diameter ConFlat non-rotatable flanges ideal for UHV applications.
 Features
  •  Designed to fit standard inch tubing O.D.’s
  •  Self-aligning
  •  Internal weld
  •  Sexless flanges
  •  Tapped and clearance (through-holes) bolt holes available
  •  Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  •  Adapters to other flange systems available
 Specifications
  •  Flange Material: 304L Stainless Steel
  •  Vacuum rated: UHV (approx. 1×10-13 Torr)
  •  Temperature range: -200°C up to 450°C

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A2.72
B0.88
C1.01
D0.50
E0.21
F2.31
Thrd1/4-28
Flange StyleFixed
Bolt Hole StyleTapped
Bolt Hole Number6
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
