Attributes

A 2.72
B 1.13
C 1.26
D 0.50
E 0.21
F 2.31
Thrd 1/4-28
Flange Style Fixed
Bolt Hole Style Tapped
Bolt Hole Number 6
3D CADLogin
DrawingLogin

CF275T-125

CF275 Fixed Flanges 1.13″ ID – Tapped

$26.50

4 in stock (can be backordered)

Part ID: 5000069

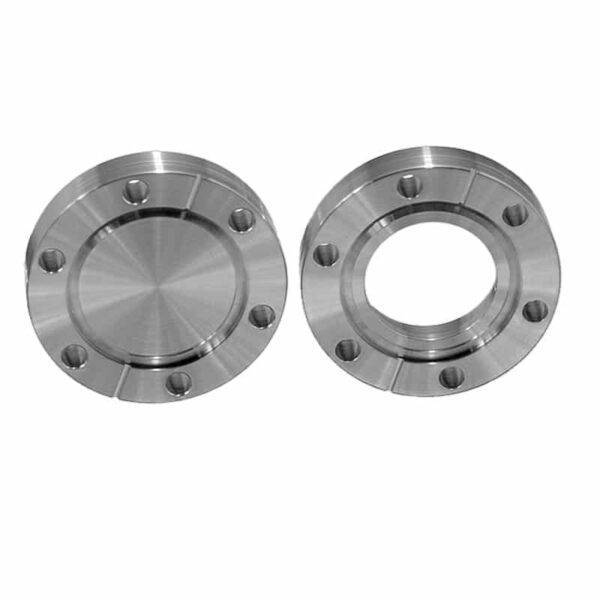

2.75 inch outer diameter ConFlat non-rotatable flanges ideal for UHV applications.



Materials:


  • 304L stainless steel
    •



Product Notes:


  • Designed to fit standard inch tubing O.D.’s
    •
  • Self-aligning
    •
  • Internal weld
    •
  • Sexless flanges
    •
  • Tapped and clearance (through-holes) bolt holes available
    •
  • Blank flanges close unused ports or custom modify
    •
  • Interchangeable with other ConFlat style flanges
    •
  • Adapters to other flange systems available
    •
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •
  • Temperature range: -200°C up to 450°C
    •
  • Leak rating < 1x10-9 std. cc/s helium
    •



Options: Contact us for price and availability


  • Metric tapped bolt holes
    •
  • Alternative materials: 316L stainless steel, aluminum, etc.
    •
