REPRESENTATIVE IMAGE

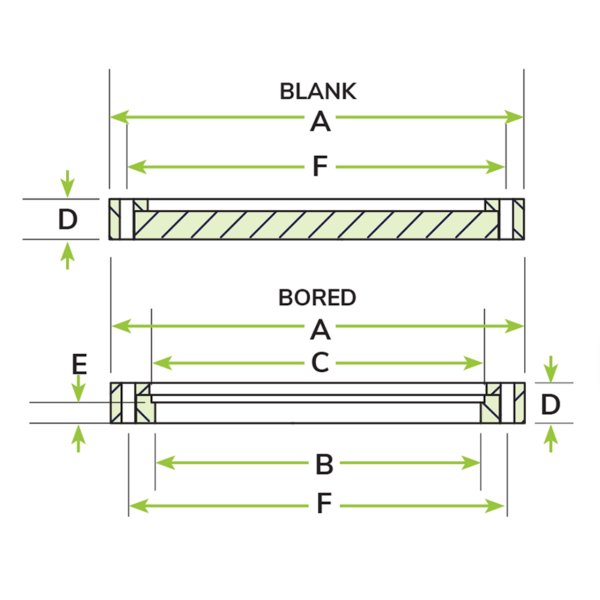

Attributes

A 4.47
B 1.94
C 2.01
D 0.75
E 0.38
F 3.63
Thrd 0.332
Flange Style Rotatable
Bolt Hole Style Clearance
Bolt Hole Number 8
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF450R-200

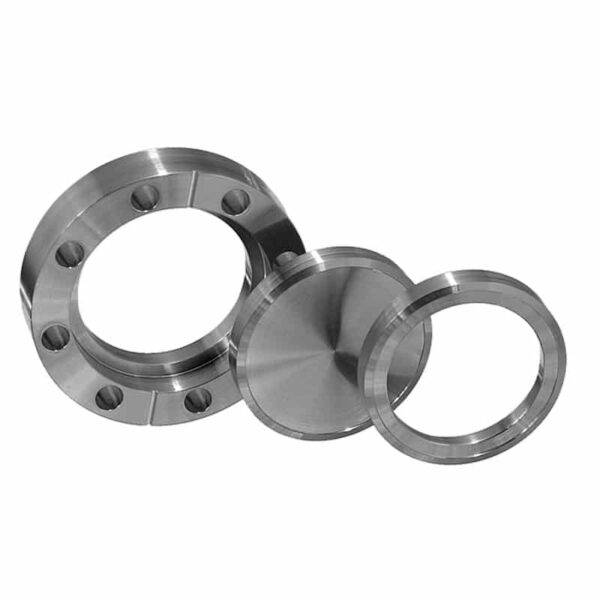

304L SS 4.50 in. (DN 63) Rotatable ConFlat Flanges with 2 in. Inner Diameter, Clearance Bolt Holes

$80.00

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Available on backorder

Part ID: 5000110


4.50 inch outer diameter ConFlat rotatable flanges ideal for UHV applications.

Features

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-holes) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available

Specifications

  • Flange Material: 304L Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-13 std. cc/s helium
