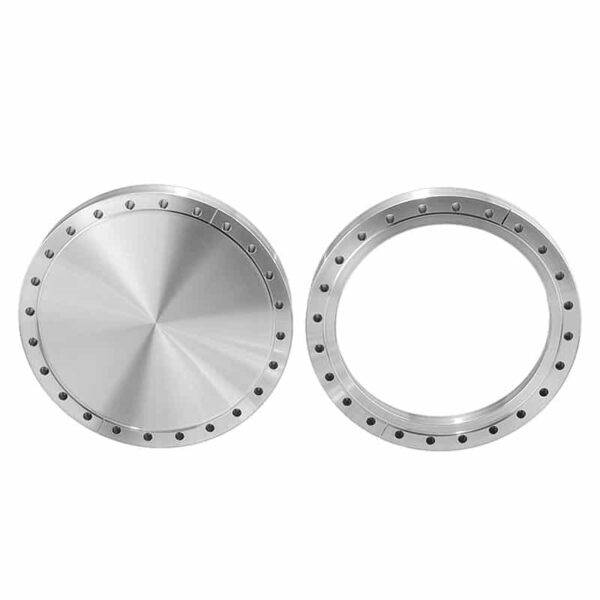

REPRESENTATIVE IMAGE

Attributes

A 9.97
B -
C -
D 0.97
E -
F 9.13
Thrd 5/16-24
Flange Style Fixed
Bolt Hole Style Tapped
Bolt Hole Number 24
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1000T-000

304L SS 10.00 in. (DN 200) Blank Fixed ConFlat Flange with Tapped Bolt Holes

$400.00

15 in stock (can be backordered)

Part ID: 5000158


10.00 inch outer diameter ConFlat (DN200 CF) non-rotatable flanges ideal for UHV applications.

Features

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-holes) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available

Specifications

  • Flange Material: 304L Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-9 std. cc/s helium

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Attributes

A 9.97
B -
C -
D 0.97
E -
F 9.13
Thrd 5/16-24
Flange Style Fixed
Bolt Hole Style Tapped
Bolt Hole Number 24
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.
