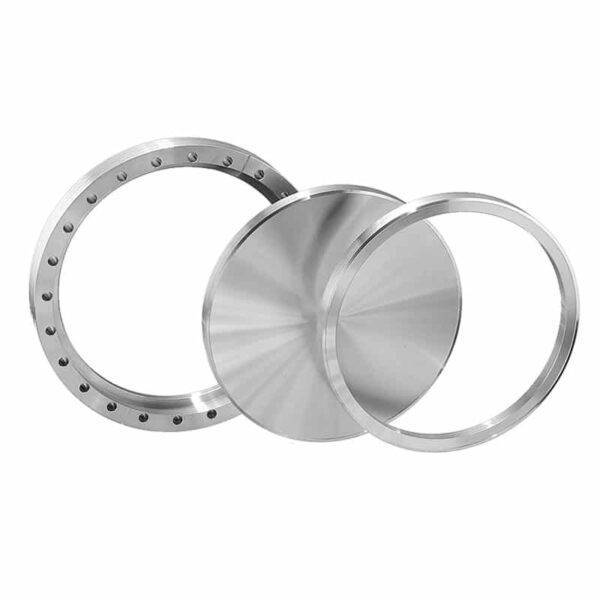

REPRESENTATIVE IMAGE

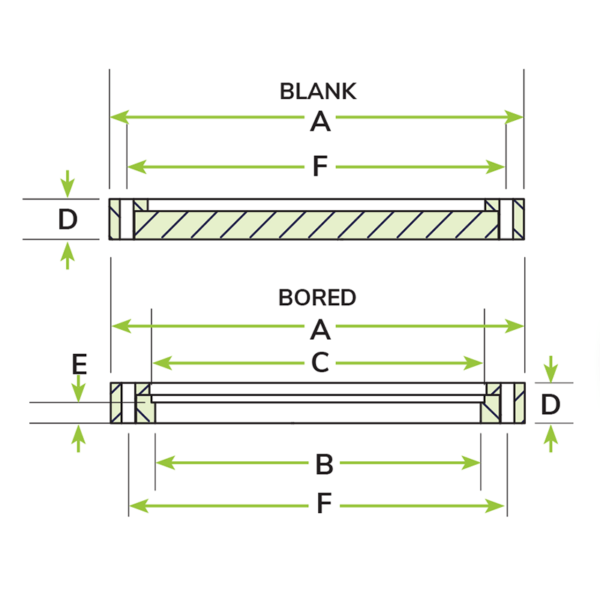

Attributes

A 9.97
B 7.83
C 8.02
D 0.97
E 0.50
F 9.13
Thrd 5/16-24
Flange Style Rotatable
Bolt Hole Style Tapped
Bolt Hole Number 24
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1000RT-800

304SS 10.00 in. Rotatable ConFlat Flange with 7.83 in. Inner Diameter, Tapped Bolt Holes

Original price was: $565.00.Current price is: $508.50.

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Available on backorder

Part ID: 5000163


10.00 inch outer diameter ConFlat (DN200 CF) rotatable flanges ideal for UHV applications.

Materials

  • 304L Stainless Steel

Product Notes

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-hole) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1x10-9 std. cc/s helium

Options: Contact us for price and availability

  • Metric tapped flanges
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
