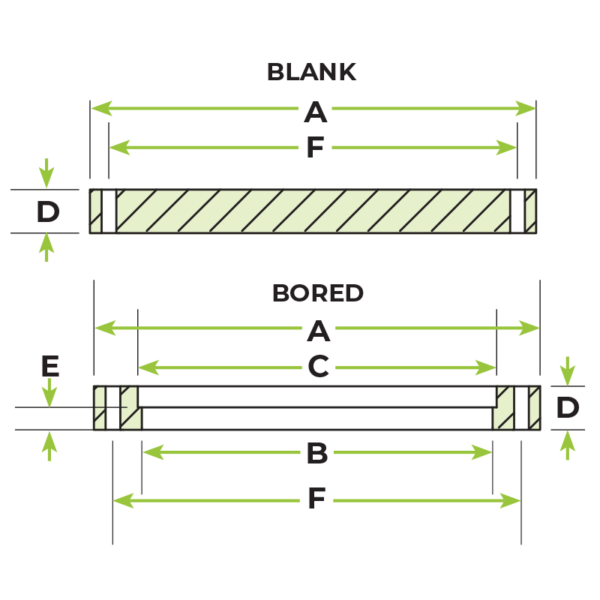

Attributes

A 13.25
B 10.50
C 10.78
D 1.12
E 0.50
F 12.06
Thrd 0.390
Flange Style Fixed
Bolt Hole Style Clearance
Bolt Hole Number 30
3D CADLogin
DrawingLogin

CF1325-1075

CF1325 Fixed Flanges 10.50″ ID – Clearance

$675.00

Part ID: 5000174

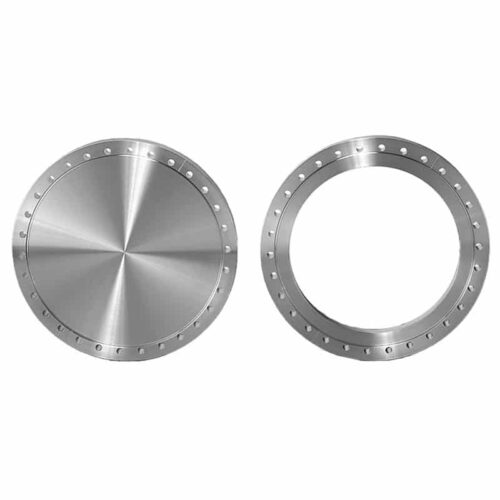

13.25 inch outer diameter ConFlat (CF) non-rotatable flanges ideal for UHV applications.


Materials:

  • 304L stainless steel



Product Notes:

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-hole) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1x10-9 std. cc/s helium



Options: Contact us for price and availability

  • Metric tapped flanges
  • Custom flange combinations
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
