• 5004000
  • 5004000

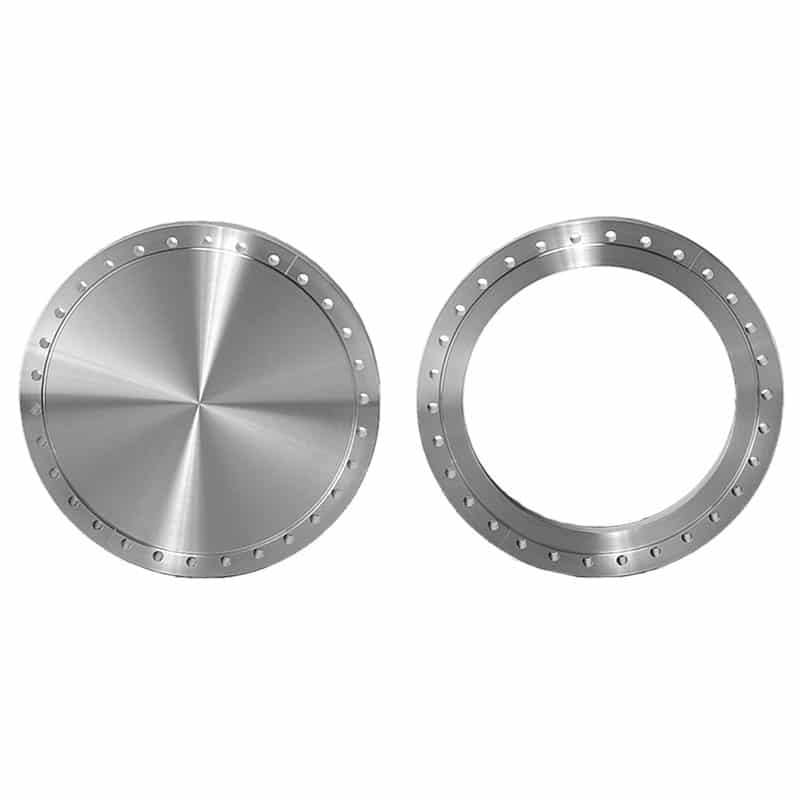

REPRESENTATIVE IMAGE

Attributes

A13.25
B10.5
C10.78
D1.12
E0.5
F12.06
Thrd3/8 - 24
Flange StyleFixed
Bolt Hole StyleTapped
Bolt Hole Number30
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1325T-1075

304L SS 13.25 in. (DN 275) Fixed ConFlat Flange with 10.5 in. Inner Diameter, Tapped Bolt Holes

Part ID: 5000177
$761.25
Standard Lead Time:
6 Weeks
Available on backorder


13.25 inch outer diameter ConFlat non-rotatable flanges ideal for UHV applications.
 Features
  •  Designed to fit standard inch tubing O.D.’s
  •  Self-aligning
  •  Internal weld
  •  Sexless flanges
  •  Tapped and clearance (through-holes) bolt holes available
  •  Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  •  Adapters to other flange systems available
 Specifications
  •  Flange Material: 304L Stainless Steel
  •  Vacuum rated: UHV (approx. 1×10-13 Torr)
  •  Temperature range: -200°C up to 450°C

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A13.25
B10.5
C10.78
D1.12
E0.5
F12.06
Thrd3/8 - 24
Flange StyleFixed
Bolt Hole StyleTapped
Bolt Hole Number30
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
