REPRESENTATIVE IMAGE

Attributes

A 13.25
B -
C -
D 1.12
E -
F 12.06
Thrd 0.390
Flange Style Rotatable
Bolt Hole Style Clearance
Bolt Hole Number 30
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1325R-000

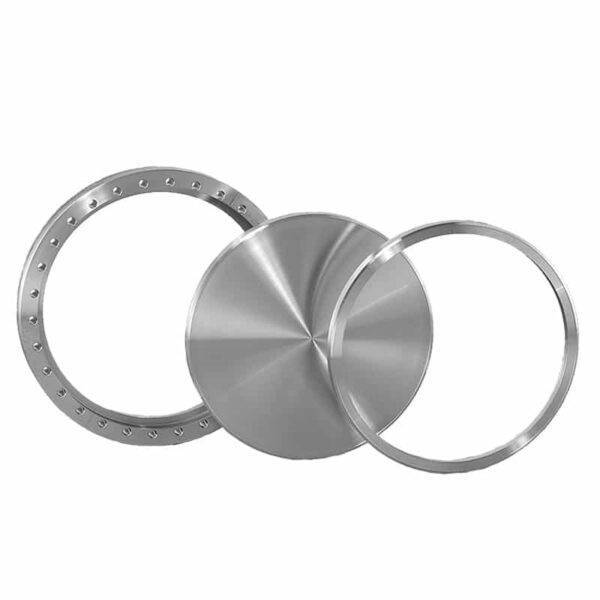

304L SS 13.25 in. (DN 275) Blank Rotatable ConFlat Flange with Clearance Bolt Holes

$1,160.00

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Available on backorder

Part ID: 5000178


13.25 inch outer diameter ConFlat rotatable flanges ideal for UHV applications.

Features

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-holes) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available

Specifications

  • Flange Material: 304L Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-13 std. cc/s helium

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Attributes

A 13.25
B -
C -
D 1.12
E -
F 12.06
Thrd 0.390
Flange Style Rotatable
Bolt Hole Style Clearance
Bolt Hole Number 30
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.
