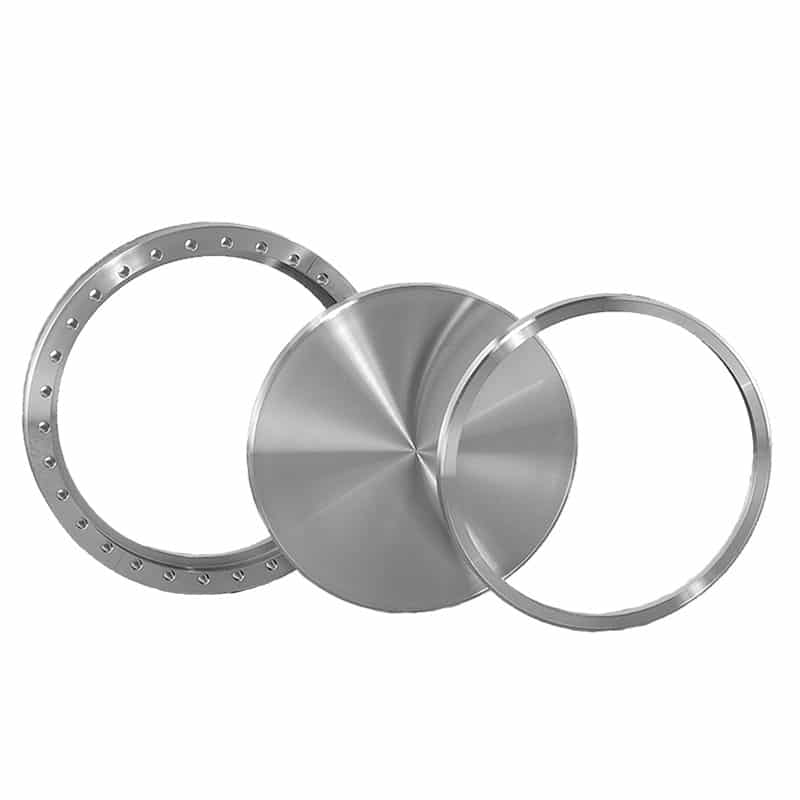

CF1325 (13.25 O.D.) Rotatable Flanges
13.25 inch outer diameter ConFlat rotatable flanges ideal for UHV applications.
Materials:
- 304L stainless steel
Product Notes:
- Designed to fit standard inch tubing O.D.’s
- Self-aligning
- Internal weld
- Sexless flanges
- Tapped and clearance (through-hole) bolt holes available
- Blank flanges close unused ports or custom modify
- Interchangeable with other ConFlat style flanges
- Adapters to other flange systems available
- Vacuum rated: UHV (approx. 1×10-13 Torr)
- Temperature range: -200°C up to 450°C
- Leak rating < 1×10-13 std. cc/s helium
Options: Contact us for price and availability
- Metric tapped flanges
- Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | A | B | C | D | E | F | Thrd | Flange Style | Bolt Hole Style | Bolt Hole Number | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 5000178 | Reference Number | CF1325R-000 | A | 13.25 | B | - | C | - | D | 1.12 | E | - | F | 12.06 | Thrd | 0.390 | Flange Style | Rotatable | Bolt Hole Style | Clearance | Bolt Hole Number | 30 | 3D CAD | Login | Drawing | Login | Unit Price | $1,160.00 | Contact | |
| Part ID | 5000179 | Reference Number | CF1325R-1000 | A | 13.25 | B | 9.75 | C | 10.03 | D | 1.12 | E | 0.50 | F | 12.06 | Thrd | 0.390 | Flange Style | Rotatable | Bolt Hole Style | Clearance | Bolt Hole Number | 30 | 3D CAD | Login | Drawing | Login | Unit Price | $1,115.00 | Contact | |
| Part ID | 5000180 | Reference Number | CF1325R-1075 | A | 13.25 | B | 10.50 | C | 10.77 | D | 1.12 | E | 0.50 | F | 12.06 | Thrd | 0.390 | Flange Style | Rotatable | Bolt Hole Style | Clearance | Bolt Hole Number | 30 | 3D CAD | Login | Drawing | Login | Unit Price | $1,320.00 | Contact | |
| Part ID | 5000181 | Reference Number | CF1325RT-000 | A | 13.25 | B | - | C | - | D | 1.12 | E | - | F | 12.06 | Thrd | 3/8-24 | Flange Style | Rotatable | Bolt Hole Style | Tapped | Bolt Hole Number | 30 | 3D CAD | Login | Drawing | Login | Unit Price | $1,150.00 | Contact | |
| Part ID | 5000182 | Reference Number | CF1325RT-1000 | A | 13.25 | B | 9.75 | C | 10.03 | D | 1.12 | E | 0.5 | F | 12.06 | Thrd | 3/8-24 | Flange Style | Rotatable | Bolt Hole Style | Tapped | Bolt Hole Number | 30 | 3D CAD | Login | Drawing | Login | Unit Price | $1,175.00 | Contact | |
| Part ID | 5000183 | Reference Number | CF1325RT-1075 | A | 13.25 | B | 10.5 | C | 10.77 | D | 1.12 | E | 0.5 | F | 12.06 | Thrd | 3/8-24 | Flange Style | Rotatable | Bolt Hole Style | Tapped | Bolt Hole Number | 30 | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | Contact |
