Attributes

A 13.25
B 9.75
C 10.03
D 1.12
E 0.50
F 12.06
Thrd 0.390
Flange Style Rotatable
Bolt Hole Style Clearance
Bolt Hole Number 30
3D CADLogin
DrawingLogin

CF1325R-1000

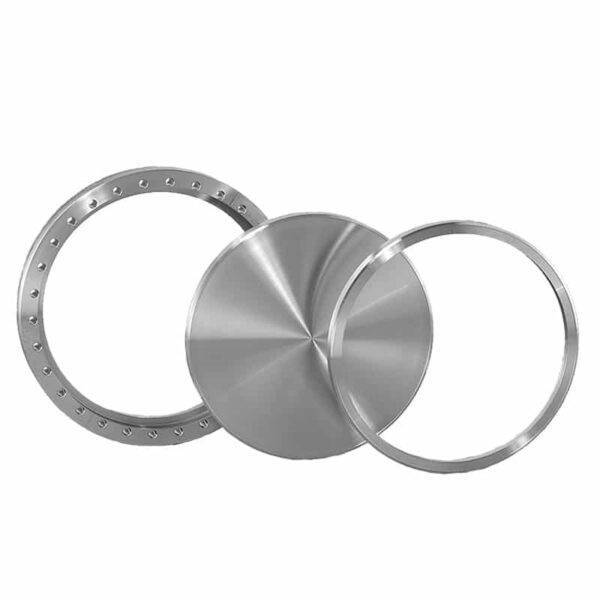

304SS 13.25 in. Rotatable ConFlat Flange with 9.75 in. Inner Diameter, Clearance Bolt Holes

$1,130.00

Available on backorder

Part ID: 5000179

13.25 inch outer diameter ConFlat rotatable flanges ideal for UHV applications.

Materials

  • 304L Stainless Steel

Product Notes

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-hole) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1x10-13 std. cc/s helium

Options: Contact us for price and availability

  • Metric tapped flanges
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
