CF1325R-1075

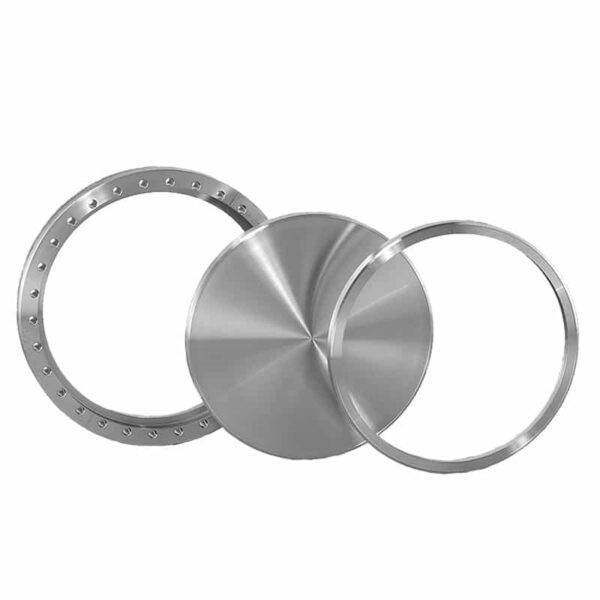

304L SS 13.25 in. (DN 275) Rotatable ConFlat Flange with 10.5 in. Inner Diameter, Clearance Bolt Holes

Part ID: 5000180


















$1,320.00








































Need more than what you see in stock? Let us know and we can likely assemble in less than a day.




















			Standard Lead Time:

6 Weeks
















































Available on backorder

















































13.25 inch outer diameter ConFlat rotatable flanges ideal for UHV applications.




 Features






  •  Designed to fit standard inch tubing O.D.’s
    •

  •  Self-aligning
    •

  •  Internal weld
    •

  •  Sexless flanges
    •

  •  Tapped and clearance (through-holes) bolt holes available
    •

  •  Blank flanges close unused ports or custom modify
    •

  • Interchangeable with other ConFlat style flanges
    •

  •  Adapters to other flange systems available
    •









 Specifications






  •  Flange Material: 304L Stainless Steel
    •

  •  Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  •  Temperature range: -200°C up to 450°C
    •
