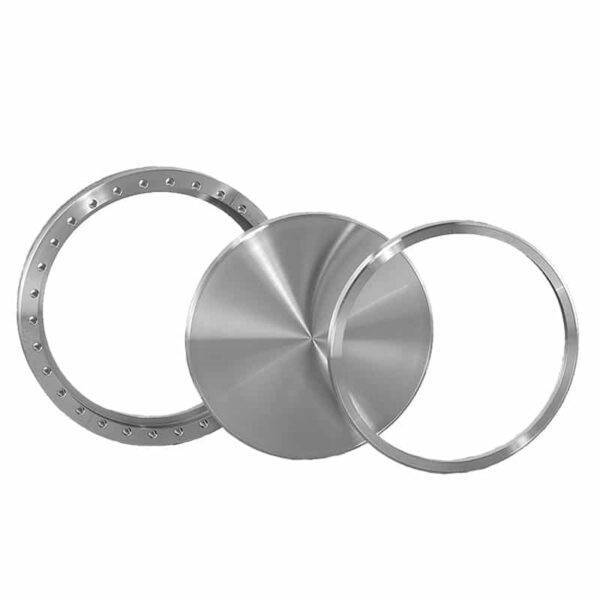

REPRESENTATIVE IMAGE

Attributes

A 13.25
B 10.5
C 10.77
D 1.12
E 0.5
F 12.06
Thrd 3/8-24
Flange Style Rotatable
Bolt Hole Style Tapped
Bolt Hole Number 30
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1325RT-1075

304L SS 13.25 in. (DN 275) Rotatable ConFlat Flange with 10.5 in. Inner Diameter, Tapped Bolt Holes

Request a Quote for Price

Available on backorder

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Part ID: 5000183


13.25 inch outer diameter ConFlat rotatable flanges ideal for UHV applications.

Features

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-holes) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available

Specifications

  • Flange Material: 304L Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-13 std. cc/s helium
