Attributes

A 14.00
B 11.75
C 12.03
D 1.12
E 0.50
F 12.81
Thrd 3/8-24
Flange Style Fixed
Bolt Hole Style Tapped
Bolt Hole Number 30
3D CADLogin
DrawingLogin

CF1400T-1200

CF1400 Fixed Flanges 11.75″ ID – Tapped

$875.00

Part ID: 5000187

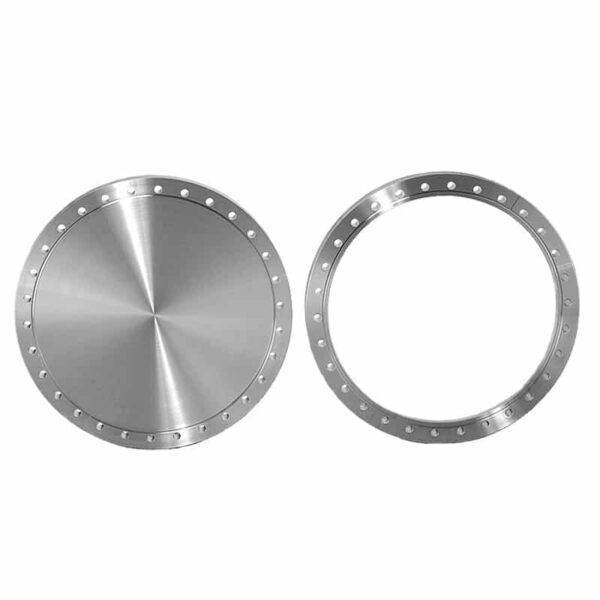

14.00 inch outer diameter ConFlat (DN295 CF) non-rotatable flanges ideal for UHV applications.


Materials:

  • 304L stainless steel



Product Notes:

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-holes) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1x10-9 std. cc/s helium



Options: Contact us for price and availability

  • Metric tapped bolt holes
  • Alternative materials: 316L stainless steel, aluminum, etc.
