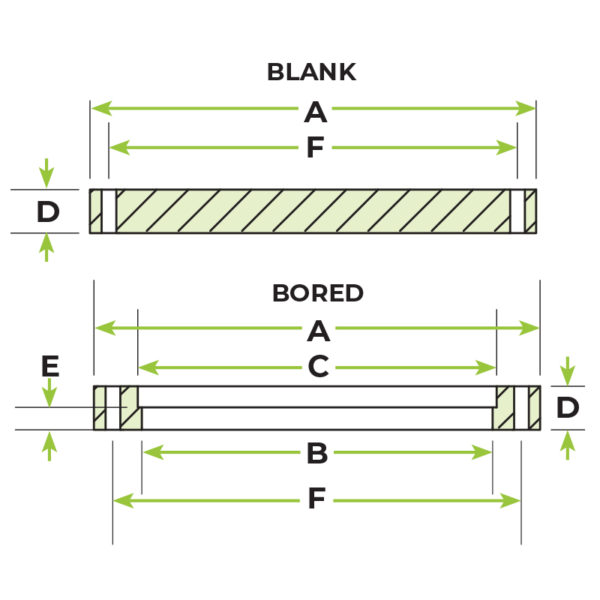

Attributes

A 16.50
B 13.75
C 14.03
D 1.12
E 0.50
F 15.31
Thrd 0.39
Flange Style Fixed
Bolt Hole Style Clearance
Bolt Hole Number 36
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1650-1400

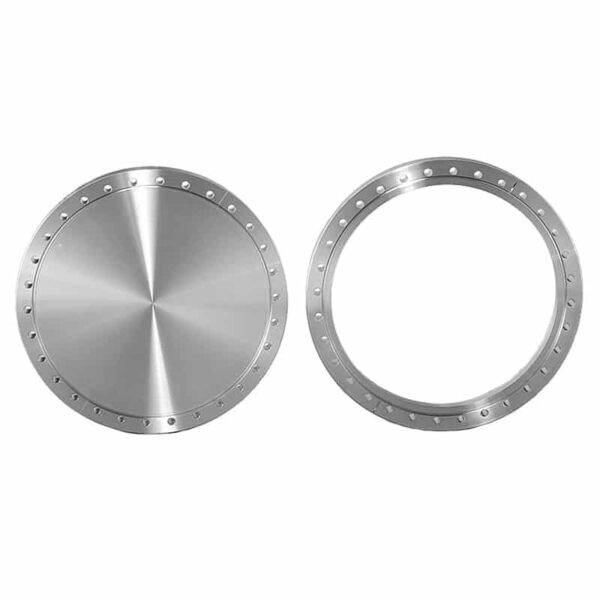

304L SS 16.50 in. (DN 350) Fixed ConFlat Flange with 13.75 in. Inner Diameter, Clearance Bolt Holes

Original price was: $1,575.00.Current price is: $1,181.25.

Your Price

4 in stock (can be backordered)

Part ID: 5000201









16.50 inch outer diameter ConFlat (DN295 CF) non-rotatable flanges ideal for UHV applications.




 Features






  •  Designed to fit standard inch tubing O.D.’s
    •

  •  Self-aligning
    •

  •  Internal weld
    •

  •  Sexless flanges
    •

  •  Tapped and clearance (through-holes) bolt holes available
    •

  •  Blank flanges close unused ports or custom modify
    •

  • Interchangeable with other ConFlat style flanges
    •

  •  Adapters to other flange systems available
    •









 Specifications






  •  Flange Material: 304L Stainless Steel
    •

  •  Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  •  Temperature range: -200°C up to 450°C
    •

  •  Leak rating < 1×10-9 std. cc/s helium
    •
