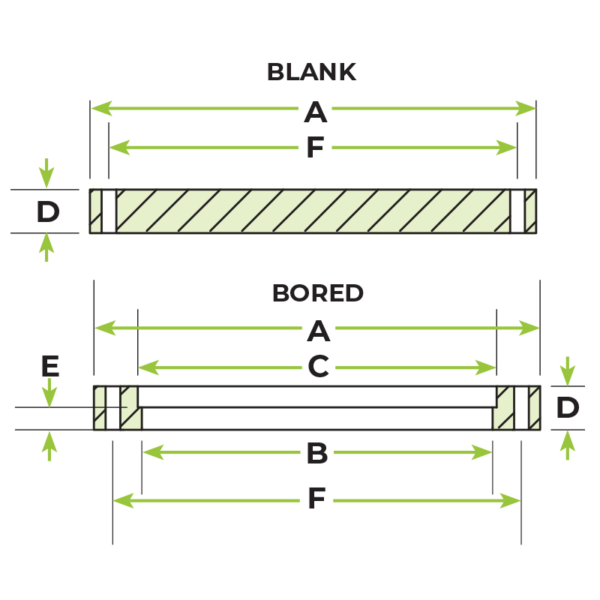

Attributes

A 16.50
B 13.75
C 14.03
D 1.12
E 0.50
F 15.31
Thrd 3/8-24
Flange Style Fixed
Bolt Hole Style Tapped
Bolt Hole Number 36
3D CADLogin
DrawingLogin

CF1650T-1400

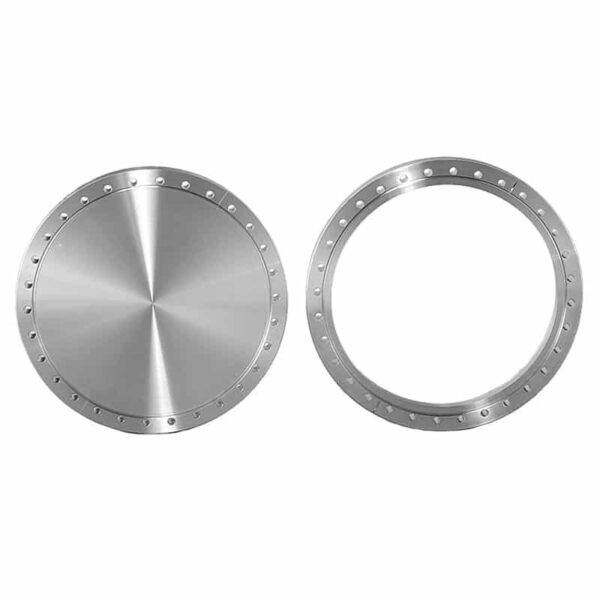

304SS 16.50 in. Fixed ConFlat Flange with 13.75 in. Inner Diameter, Tapped Bolt Holes

$1,720.00

Available on backorder

Part ID: 5000203
















16.50 inch outer diameter ConFlat (DN295 CF) non-rotatable flanges ideal for UHV applications.


Materials



  • 304L Stainless Steel
    •




 Product Notes



  • Designed to fit standard inch tubing O.D.’s
    •
  • Self-aligning
    •
  • Internal weld
    •
  • Sexless flanges
    •
  • Tapped and clearance (through-hole) bolt holes available
    •
  • Blank flanges close unused ports or custom modify
    •
  • Interchangeable with other ConFlat style flanges
    •
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •
  • Temperature range: -200°C up to 450°C
    •
  • Leak rating < 1x10-9 std. cc/s helium
    •




 Options: Contact us for price and availability



  • Metric tapped flanges
    •
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
    •
