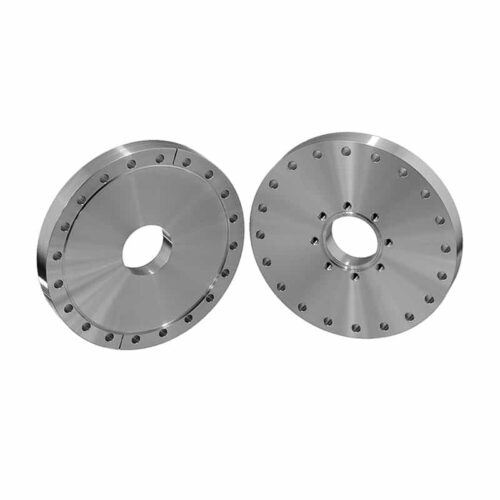

REPRESENTATIVE IMAGE

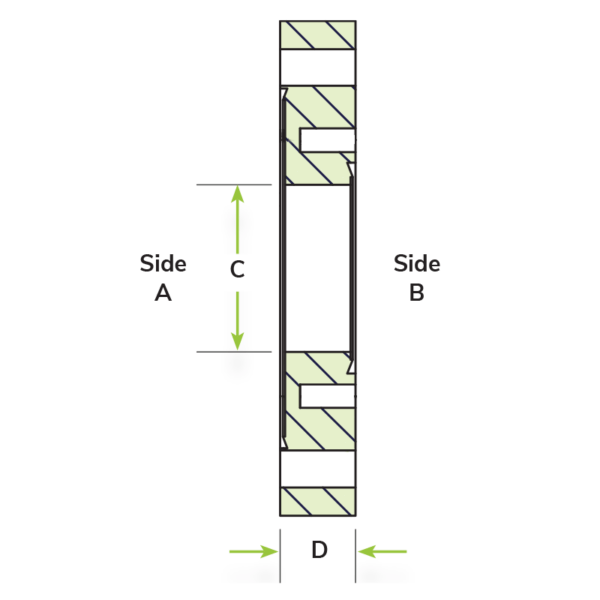

Attributes

C 4
D 0.84
Side A CF675T-400
Side B CF600BT-400
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF675TXCF600BT-400-ZLR-0.840

Zero Length Reducer with 6.75 in. (DN 125) to 6.00 in. (DN 100) ConFlat Flanges

Request a Quote for Price

Available on backorder

Part ID: 5000312









These flanges feature different CF flange sizes on either side, enabling direct assembly of two different sizes of CF flanges with minimal impact on the added length to your system for the transition. Zero-length reducers have the width of one standard flange.




Features






  • Different size CF flange on both sides
    •

  • Enable direct assembly of two different size CF flanges with minimal impact to space needed within your vacuum system.
    •

  • Ideal to add a spacer to your system or customize with a radial port
    •

  • At least one, and when necessary both flanges have tapped bolt holes – See line item descriptions for details.
    •

  • Use standard CF gaskets to seal
    •

  • Self-aligning
    •

  • Sexless flanges
    •

  • Interchangeable with other ConFlat style flanges
    •

  • Adapters to other flange systems available
    •









Specifications






  • Temperature Range: -200°C to 450°C
    •

  • Vacuum Range: UHV (Approx. 1×10-13 Torr)
    •

  • Standard materials: 304L stainless steel
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    C 4



                    D 0.84



                    Side A CF675T-400



                    Side B CF600BT-400



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
