REPRESENTATIVE IMAGE

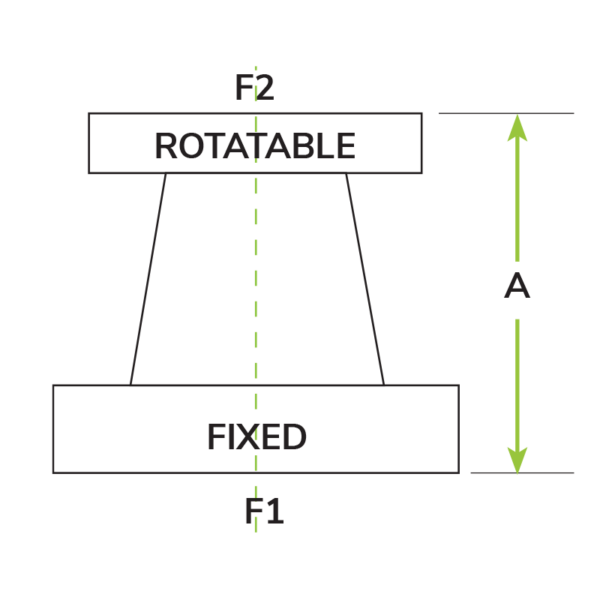

Attributes

A 2.75
Flange 1 Size CF275
Flange 2 Size CF212
Flange 1 Tube O.D. 1.5
Flange 2 Tube O.D. 1
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF275XCF212R-150X100-CR-2.751

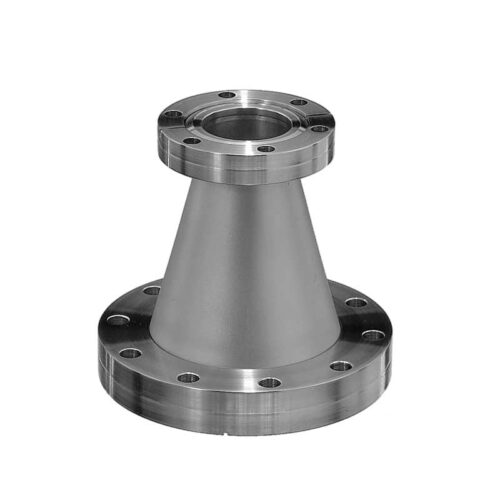

Conical Reducer with 2.75 (DN 40) in. to 2.12 in. (DN 25) ConFlat Flanges

$165.00

Available on backorder

Part ID: 5000442


Materials

  • Flanges: 304L Stainless Steel
  • Fitting: 304 Stainless Steel

Product Notes

  • Connects different size CF flanges
  • Maximizes conductance during the transition to a smaller size tubing
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C

Options: Call for price and availability

  • Tapped flanges
  • Custom flange combinations
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
