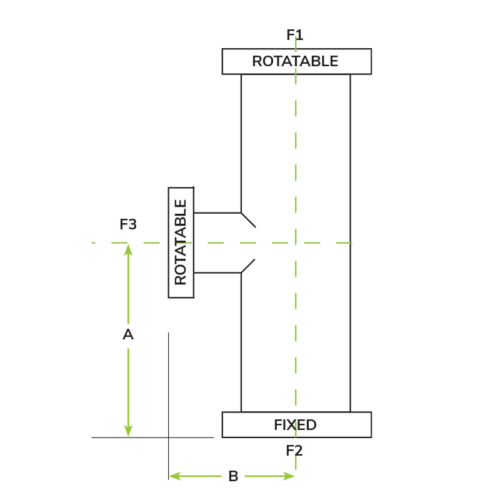

Attributes

A	5.5
B	4.71
Flange 3 O.D.	2.72
Flange 1 & 2 O.D.	7.97
Flange 3 Tube O.D.	1.5
Flange 1 & 2 Tube O.D.	6
3D CAD	Login
Drawing	Login

CF800XCF275-600X150-RDT-5.50X4.71

Name: CF800XCF275-600X150-RDT-5.50X4.71 - ANCORP | High and Ultra-High Vacuum Products
SKU: 5000514
Price: 825.00 USD
Availability: InStock

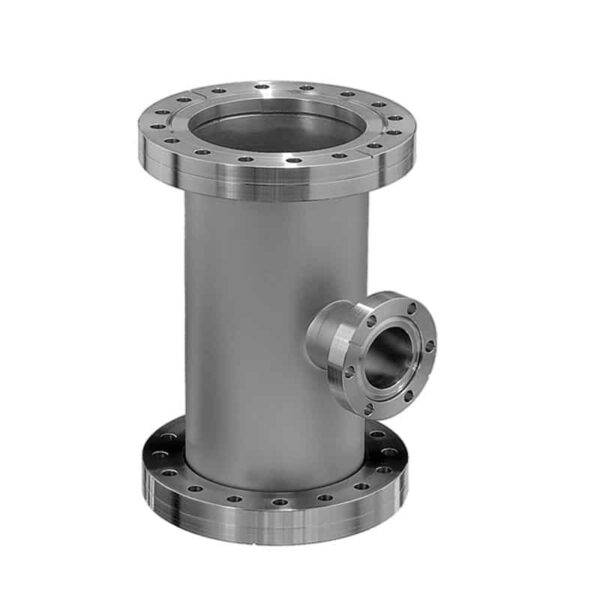

CF800 to CF275 and CF800 Cross

$825.00

Available on backorder

Part ID: 5000514

Materials:

304L stainless steel

Product Notes:

Pulled ports for optimum vacuum performance
Reducing intersection for different CF flange sizes
Vacuum rated: UHV (approx. 1×10^-13 Torr)
Temperature range: -200°C up to 450°C
Leak rating < 1×10^-9 std. cc/s helium

Options: Contact us for price and availability

Custom lengths
Tapped flanges
Custom flange combinations
Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
