REPRESENTATIVE IMAGE

Attributes

A 4.25
Flange 1 Type CF462
Flange 2 Type LF63
Flange 1 Tube O.D. 3
Flange 2 Tube O.D. 2.5
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF462XLF63-300X250-CR-4.25

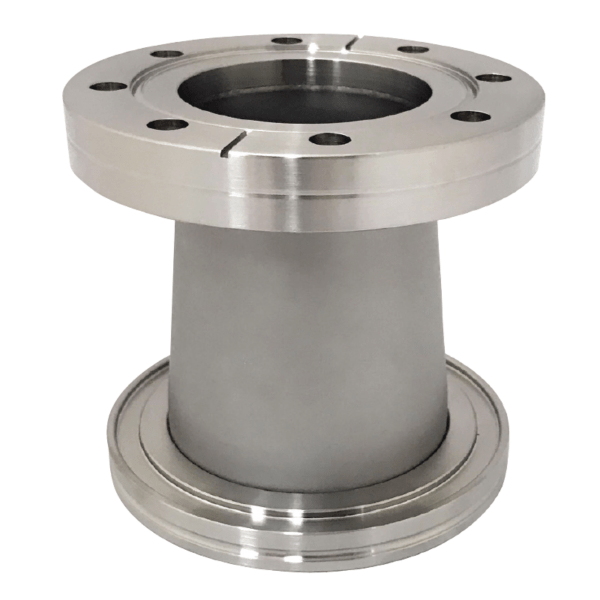

4.62 in. (DN 75) ConFlat Flange to ISO-LF63 Conical Adapter

Part ID: 5000717


















$250.00



















































			Standard Lead Time:

Contact
















































Available on backorder



















































Features






  • Adapts from CF to ISO-LF flanges for the same tubing diameter
    •









Specifications






  •  Materials:
    •







    •  Flanges: 304L Stainless Steel
      •

    •  Fitting: 304 Stainless Steel
      •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 4.25



                    Flange 1 Type CF462



                    Flange 2 Type LF63



                    Flange 1 Tube O.D. 3



                    Flange 2 Tube O.D. 2.5



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
