• 6000025
  • 6000025

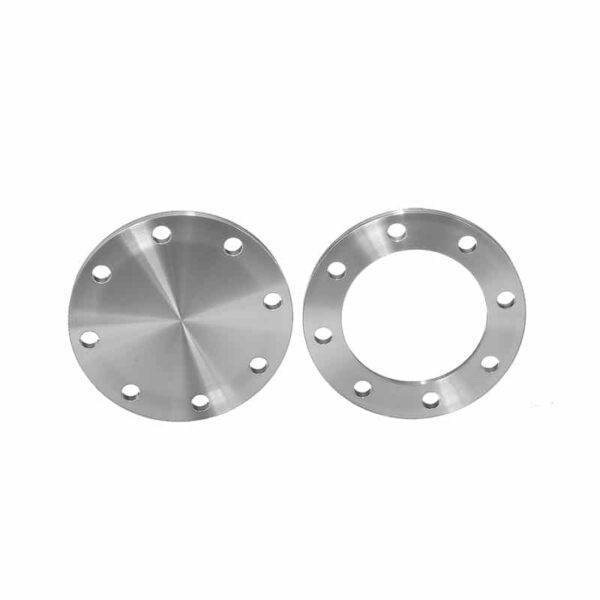

REPRESENTATIVE IMAGE

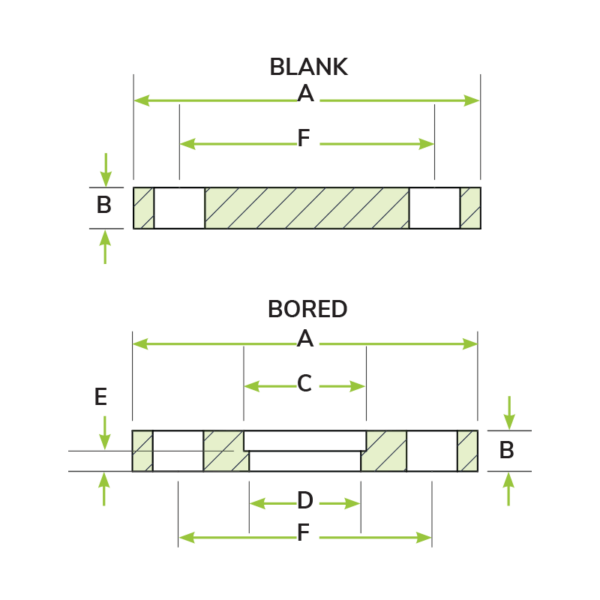

Attributes

A13.5
B0.75
CBLANK
D-
E-
F11.75
Bolt Hole NO.8
Bolt Hole Size0.812
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA800-000

800ASA Fixed Blank

Part ID: 6000022
$404.79
Standard Lead Time:
Contact
Available on backorder


These flanges are manufactured with a weld prep and tubing bore for immediate installation on your system with no additional alteration.
Features
  • O-ring groove available
    • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
      • ASA100: $ 20.00
      • ASA150: $ 20.00
      • ASA200: $ 20.00
      • ASA300: $ 35.00
      • ASA400: $ 35.00
      • ASA600: $ 50.00
      • ASA800: $ 55.00
      • ASA1000: $ 60.00
 Specifications
  • Materials:
  •  304L Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

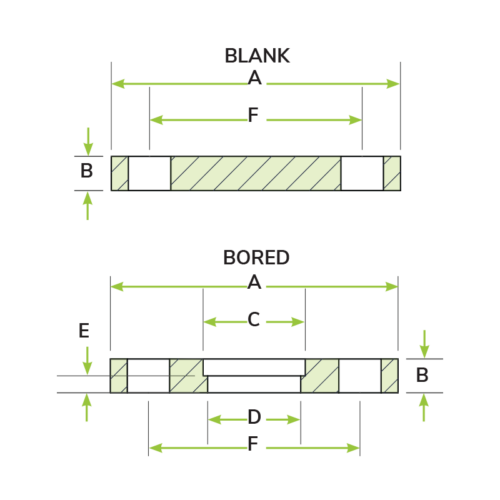

Attributes
A13.5
B0.75
CBLANK
D-
E-
F11.75
Bolt Hole NO.8
Bolt Hole Size0.812
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
