• 6000053
  • 6000053

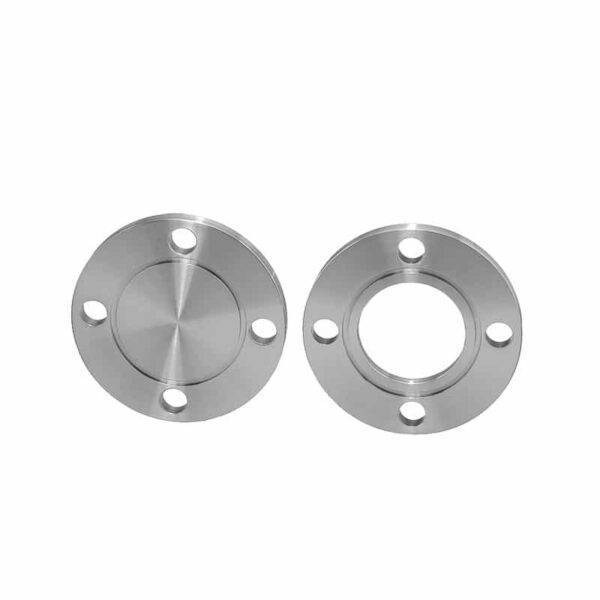

REPRESENTATIVE IMAGE

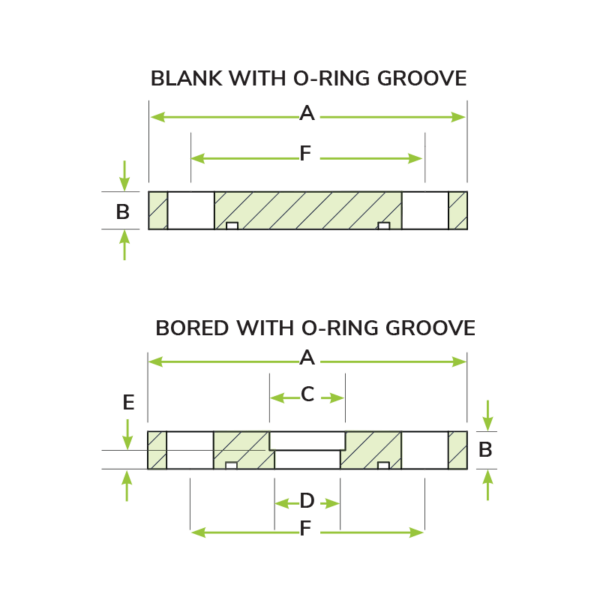

Attributes

A4.25
B0.5
CBLANK
D-
E-
F3.125
Bolt Hole NO.4
Bolt Hole Size0.625
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA100G-000

100ASA Grooved Blank

Part ID: 6000028
$117.60
1 in stock (can be backordered)


ASA fixed grooved bored flanges are manufactured with a weld prep and tubing bore for immediate installation on your system with no additional alteration.
Features
  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Interchangeable with other ASA/ANSI style flanges
 Specifications
  • Pressure range: HV (approx. 1×10-8 Torr)
  • Temperature range: -20°C to 200°C
  • Standard materials: 304L stainless steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A4.25
B0.5
CBLANK
D-
E-
F3.125
Bolt Hole NO.4
Bolt Hole Size0.625
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
