REPRESENTATIVE IMAGE

Attributes

A 4.19
Tube O.D. 1.5
Flange Style 1 LF63
Flange Style 2 100ASA
3D CADLogin
DrawingLogin

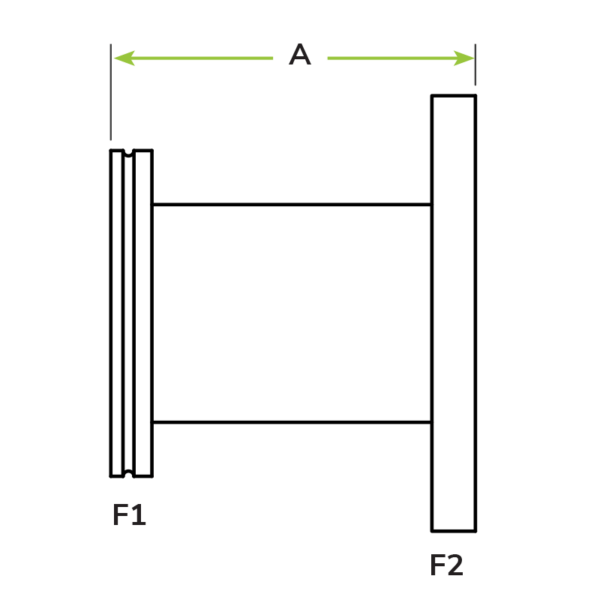

All dimensions are in inches unless otherwise specified.

LF63XASA100-150-N-4.19

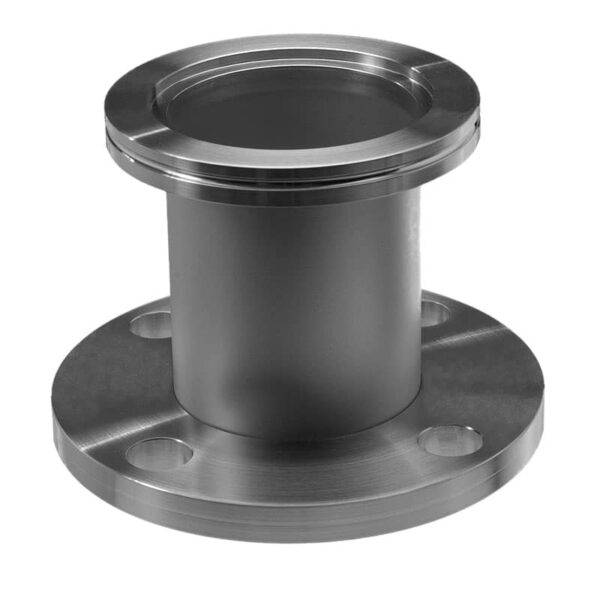

ISO-LF63/ASA100 Adapter

Original price was: $279.00.Current price is: $223.20.

Available on backorder

Part ID: 6000416


Materials

  • 304 stainless steel

Product Notes

  • Adapts from LF to ASA/ANSI flanges for the same tubing outer diameter
  • Order ASA/ANSI flanges with or without sealing groove

Options: Contact us for price and availability

  • O-Ring Options:
  • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
    • ASA100: $ 20.00
    • ASA150: $ 20.00
    • ASA200: $ 20.00
    • ASA300: $ 35.00
    • ASA400: $ 35.00
    • ASA600: $ 50.00
    • ASA800: $ 55.00
    • ASA1000: $ 60.00
