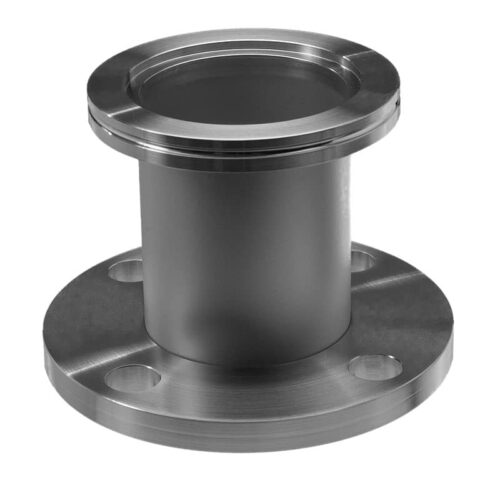

REPRESENTATIVE IMAGE

Attributes

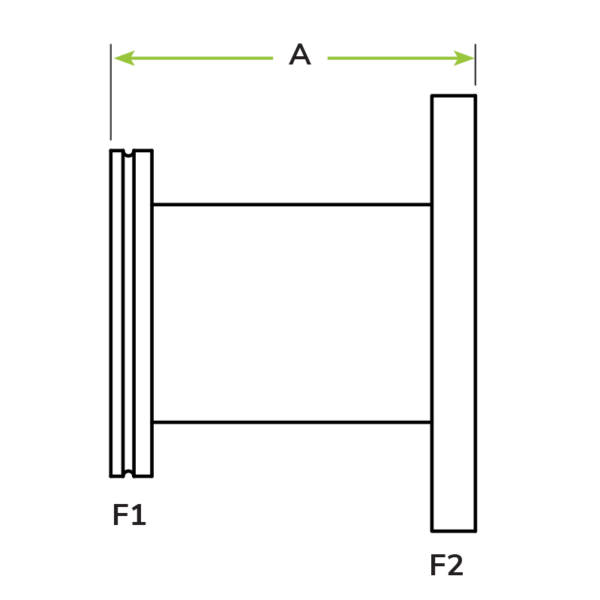

A 4.19
Tube O.D. 2.5
Flange Style 1 LF80
Flange Style 2 150ASA
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF80XASA150-250-N-4.19

ISO-LF80/ASA150 Adapter

$330.00

Available on backorder

Part ID: 6000424


Materials

  • Flanges: 304L Stainless Steel
  • Fitting: 304 Stainless Steel

Product Notes

  • Adapts from LF to ASA/ANSI flanges for the same tubing outer diameter
  • Order ASA/ANSI flanges with or without sealing groove

Options: Contact us for price and availability

  • O-Ring Options:
  • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
    • ASA100: $ 20.00
    • ASA150: $ 20.00
    • ASA200: $ 20.00
    • ASA300: $ 35.00
    • ASA400: $ 35.00
    • ASA600: $ 50.00
    • ASA800: $ 55.00
    • ASA1000: $ 60.00
