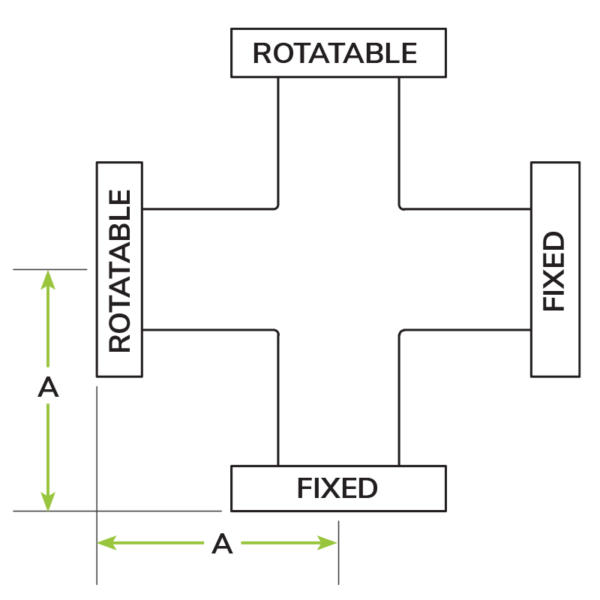

Attributes

A 7.38
Tube O.D. 8
Flange O.D. 11
3D CADLogin
DrawingLogin

ASA800-600-4X-7.38

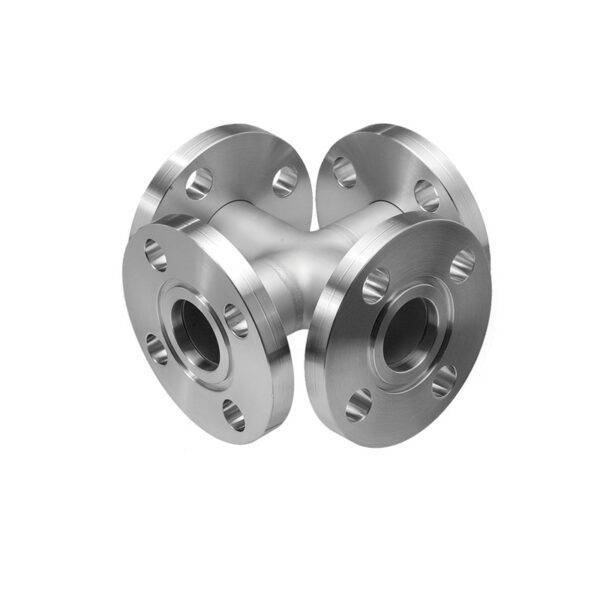

ASA800-600 Rotatable Cross

$2,833.00

Part ID: 6000620

Crosses

Crosses are manufactured with a flange on each end of an “X” shaped section of tubing. Crosses accommodate junctions or alignment considerations for vacuum system design. Crosses are also used as junction adapters between different tubing sizes or flange types. ANCORP manufactures standard crosses in 304 stainless steel, other materials available on request.



Materials:

  • Flanges: 304 stainless steel



Product Notes:

  • Pulled ports for optimum vacuum performance
  • One fixed and one rotatable flange per axis
  • O-ring groove available
    • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
      • ASA100: $ 20.00
      • ASA150: $ 20.00
      • ASA200: $ 20.00
      • ASA300: $ 35.00
      • ASA400: $ 35.00
      • ASA600: $ 50.00
      • ASA800: $ 55.00
      • ASA1000: $ 60.00



Options: Contact us for price and delivery
