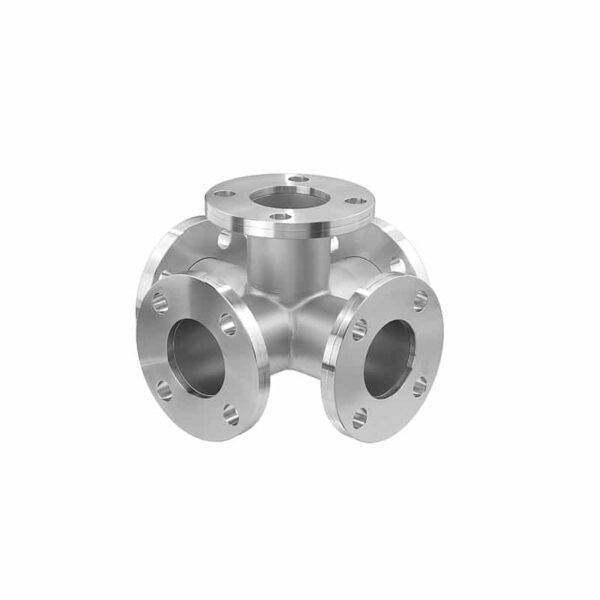

REPRESENTATIVE IMAGE

Attributes

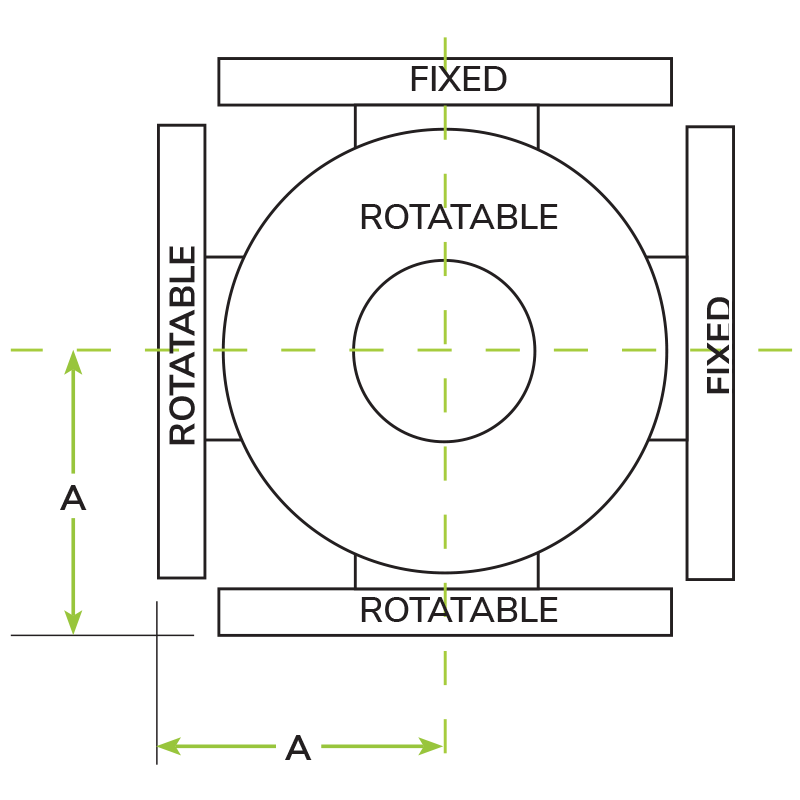

A 6.44
Tube O.D. 6
Flange O.D. 11
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA600-600-5X-6.44

Rotatable ASA600 5-Way Cross 6 in.

Request a Quote for Price

Available on backorder

Part ID: 6000649


Materials

  • Flanges: 304L Stainless Steel
  • Fitting: 304 Stainless Steel

Product Features

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-hole) bolt holes available
  • Rotatable flanges ease bolt hole alignment
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available

Product Specifications

  • Vacuum rating: 1×10-13 Torr
  • Temperature range: -200°C to 450°C
  • Low magnetic permeability of 1.005 μmax
  • Excellent for Beamlines, XHV, X-Ray, and Laser applications
  • Heat resistant to higher temperatures
  • Increased resistance to irradiation damage
  • Resistant to crevice corrosion
  • High level of weldability
  • Resistant to pitting
