Attributes

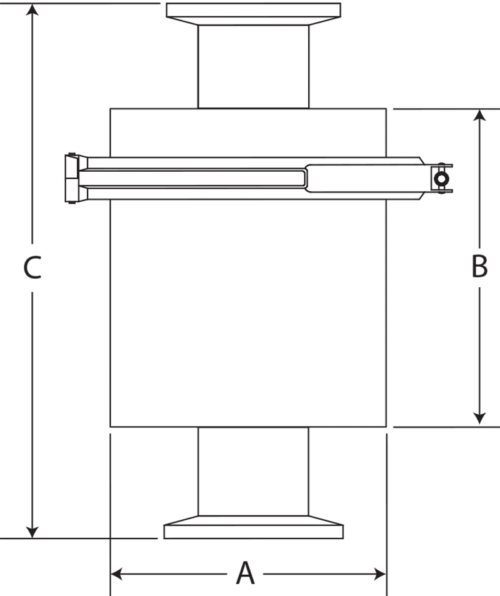

A 4
B 5
C 7
Connection QF40 FLANGE
3D CADLogin
DrawingLogin

VSRC-400-QF40-A

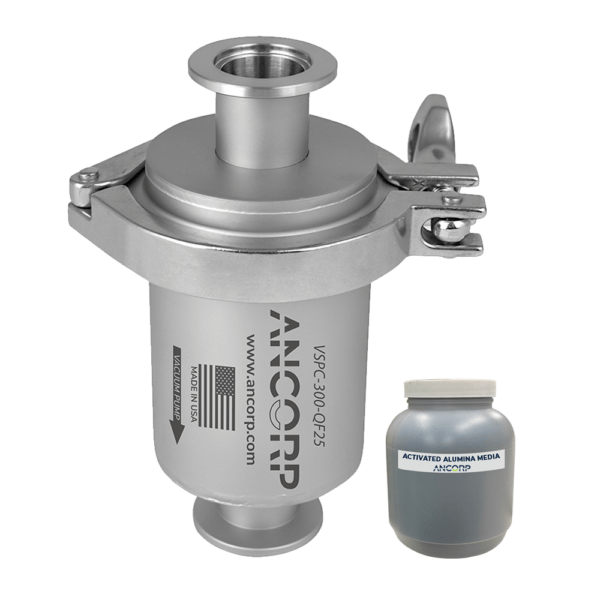

4″ diameter Activated Alumina Trap with QF40 Flange Connection

$545.00

3 in stock (can be backordered)

Part ID: 7500141







Features


  • Trapping media: ACTIVATED ALUMINA. Provides protection from pump fluid backstreaming, light water vapor loads, and acids.
    •
  • Flanged body connection for large body diameter to ease assembly and ensure consistent seals.
    •
  • 2-stage trapping system

    • Stage 1: stainless steel baffle – extends the life of the media
      •
    • Stage 2: coalescing media
      •

    •
  • Materials:

    • Body, flanges and baffle: 304 stainless steel electropolished
      •
    • Seal: Buna-N
      •

    •
  • Fully charged
    •
