• 7500104
  • 7500104

REPRESENTATIVE IMAGE

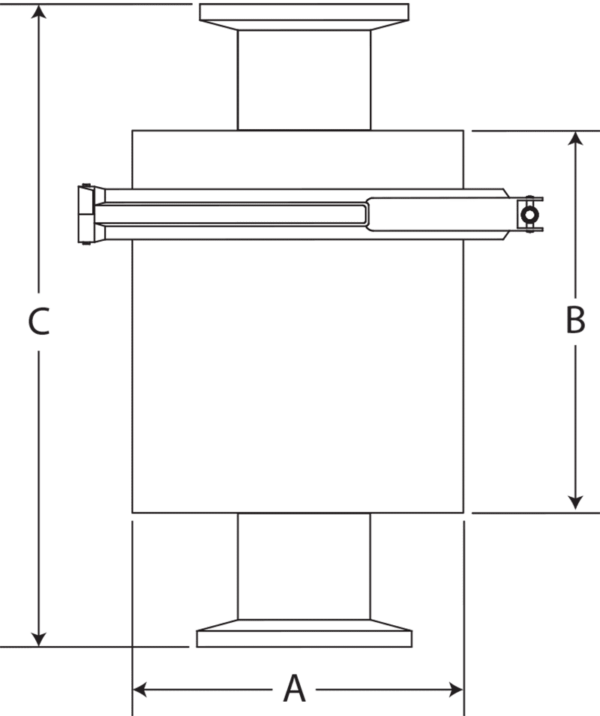

Attributes

A 6
B 7.3
C 10.4
Connection LF80 FLANGE
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

VSRC-600-LF80-O

6″ diameter Activated Charcoal Trap with LF80 Flange Connection

$842.00

Available on backorder

Part ID: 7500166











Features






  • Fully charged
    •

  • Flanged body connection for large body diameter to ease assembly and ensure consistent seals.
    •

  • 2-stage trapping system
    •



    • Stage 1: stainless steel baffle – extends the life of the media
      •

    • Stage 2: coalescing media
      •









Specifications






  • Materials:
    •





  • Body, flanges and baffle: 304L stainless steel electropolished
    •

  • Seal: Buna-N
    •

  • Trapping media: ACTIVATED CHARCOAL. Provides protection from light water vapor loads, heavy metals and organics.
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 6



                    B 7.3



                    C 10.4



                    Connection LF80 FLANGE



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
