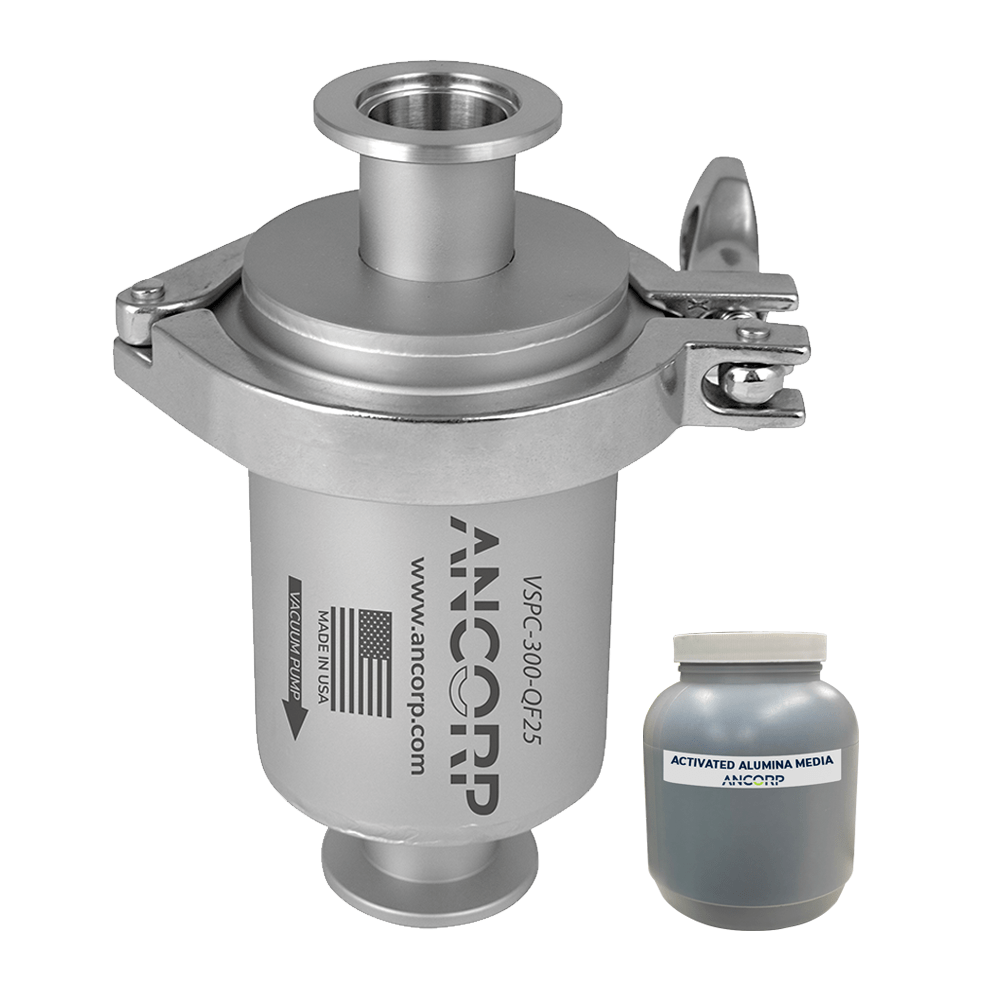

REPRESENTATIVE IMAGE

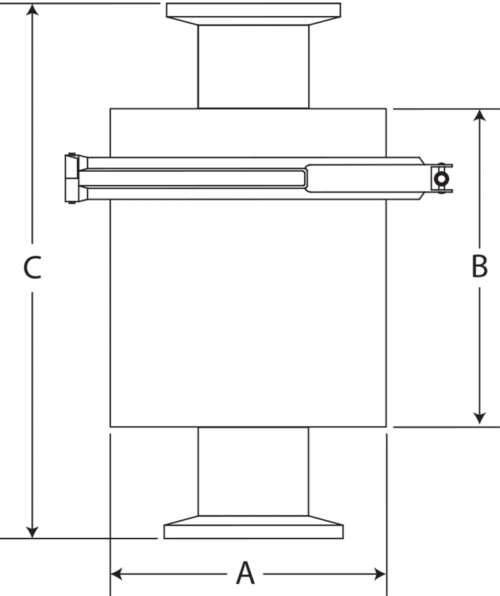

Attributes

A8
B7.3
C10.4
ConnectionLF80 FLANGE
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

VSRC-800-LF80-A

8″ diameter Activated Alumina Trap with LF80 Flange Connection

Part ID: 7500177
Request a Quote for Price
Available on backorder
Standard Lead Time:
Contact
The VSRC series foreline trap provides a rechargeable shield within your vacuum system. These traps can protect your system from backstreaming pump oil and/or your pump from contaminates created upstream within your system.
Features
  • Fully charged
  • Flanged body connection for large body diameter to ease assembly and ensure consistent seals.
  • 2-stage trapping system
    • Stage 1: stainless steel baffle – extends the life of the media
    • Stage 2: coalescing media
Specifications
  • Materials:
  • Body, flanges and baffle: 304L stainless steel electropolished
  • Seal: Buna-N
  • Trapping media: ACTIVATED ALUMINA. Provides protection from pump fluid back streaming, light water vapor loads, and acids.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

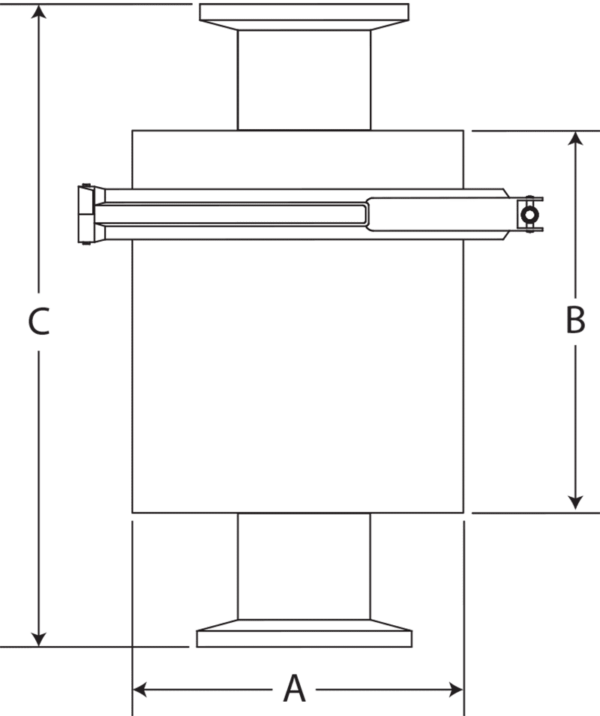

Attributes
A8
B7.3
C10.4
ConnectionLF80 FLANGE
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
