Attributes

Description ASME Burst Disk CF133 Flange w/ CF338 Gas Recovery Port
3D CADLogin
DrawingLogin

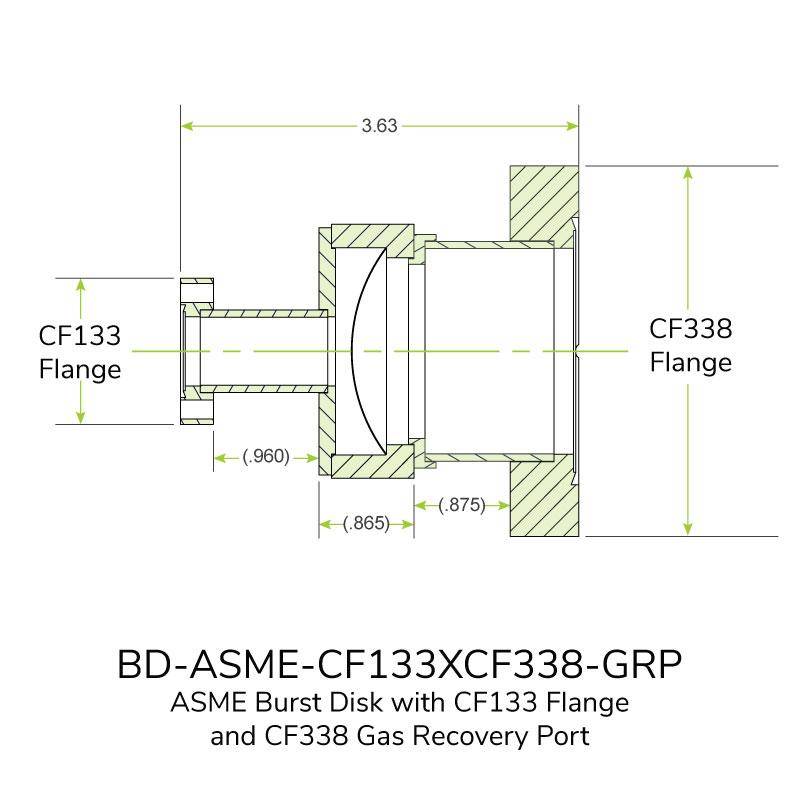

BD-ASME-CF133XCF338-GRP

ASME Burst Disk CF133 Flange w/ CF338 Gas Recovery Port

$695.00

Available on backorder

Part ID: 9100034

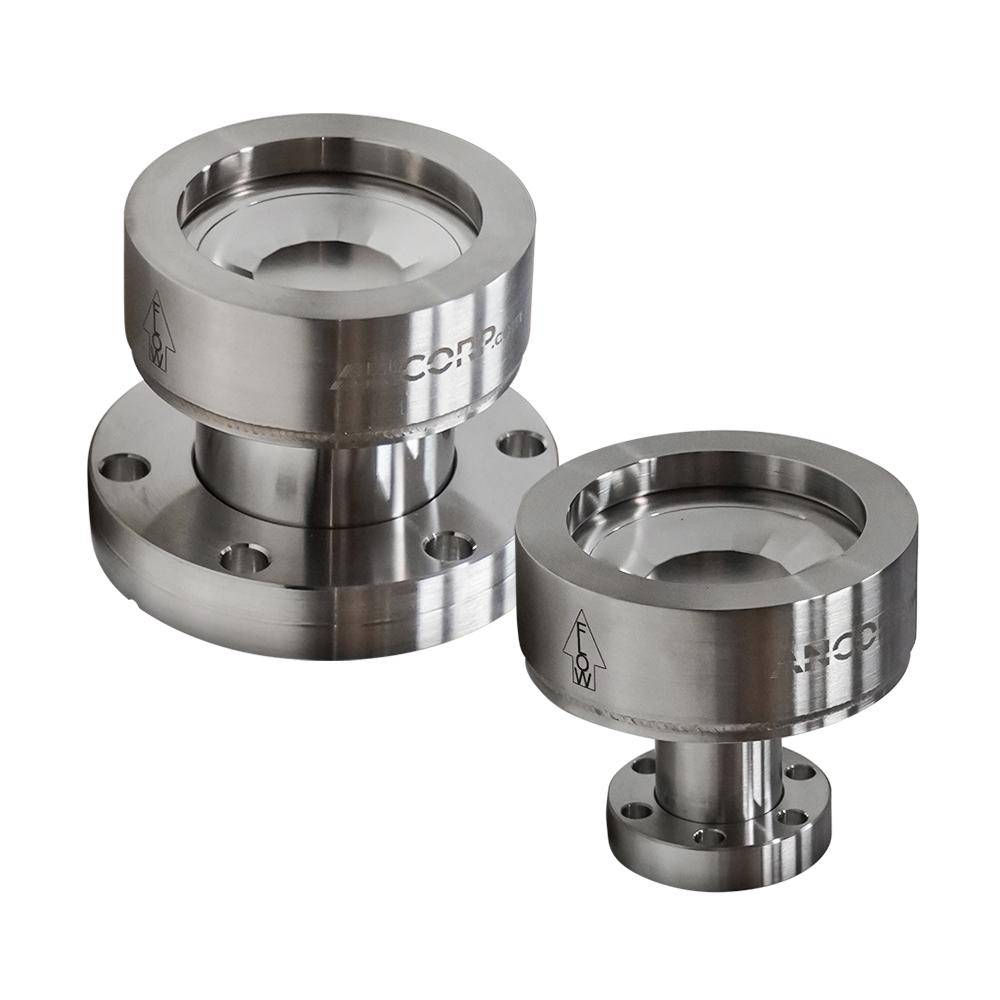

ANCORP’s ASME Overpressure burst disk protects against over-pressurization of high and ultra-high vacuum (UHV) systems.


Features



  • Pressure relief range 9 to 11.5 PSIG
    •
  • UHV Compatible all-metal construction
    •




Specifications



  • Bakeable to 450°C
    •
  • ASME UD certified
    •
  • 10CFR851 compliant
    •
  • Leak tight to 2 x 10-10 std. cc/sec of Helium
    •
  • Calculated Flow rates

    • 107 SCFM on 1.33″ flange assembly
      •

  • Gas recovery port with CF338 flange connection
    •
