Attributes

Description ASME Burst Disk CF275 Flange w/ QF50 Gas Recovery Port
3D CADLogin
DrawingLogin

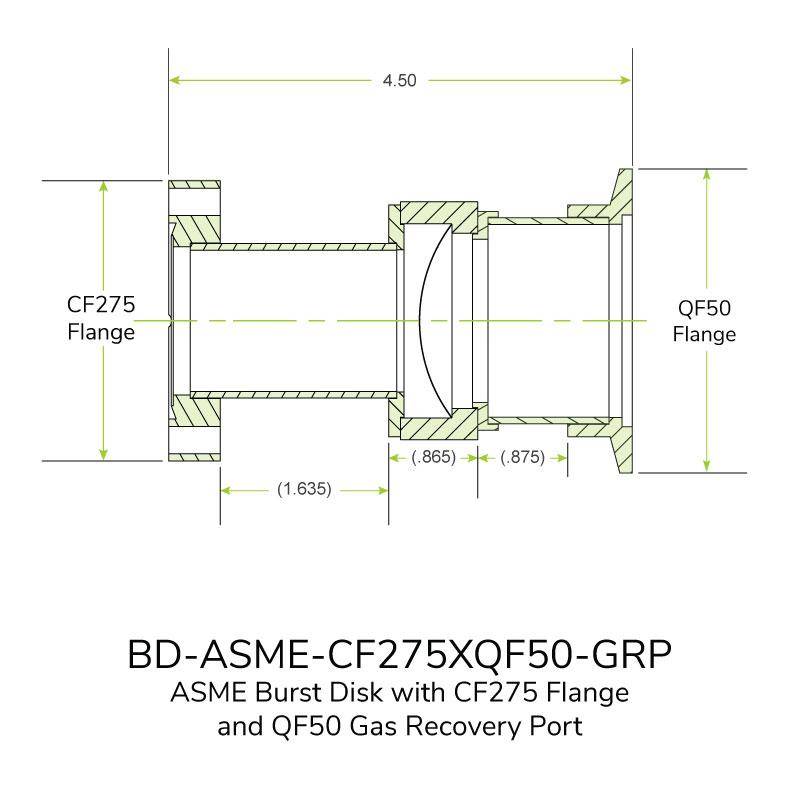

BD-ASME-CF275XQF50-GRP

ASME Burst Disk CF275 Flange w/ QF50 Gas Recovery Port

$725.00

Available on backorder

Part ID: 9100037

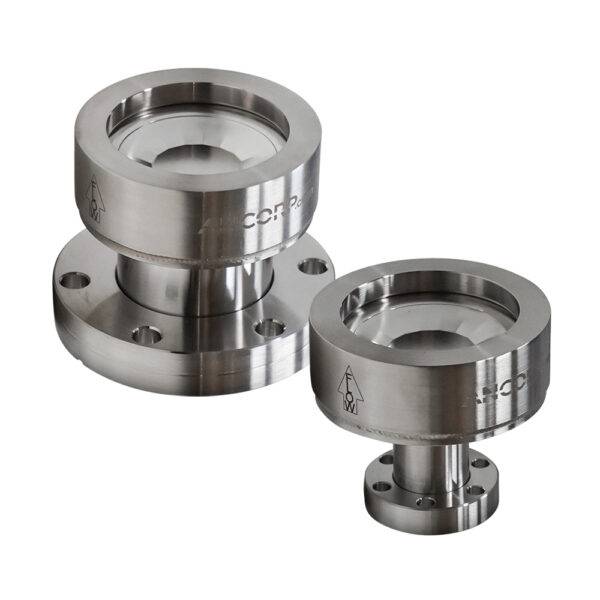

ANCORP’s ASME Overpressure burst disk protects against over pressurization of high and ultra-high vacuum (UHV) systems.


Features



  • Pressure relief range 9 to 11.5 PSIG
    •
  • UHV Compatible all-metal construction
    •




Specifications



  • Bakeable to 450°C
    •
  • ASME UD certified
    •
  • 10CFR851 compliant
    •
  • Leak tight to 2 x 10-10 std. cc/sec of Helium
    •
  • Calculated Flow rates

    • 435 SCFM on 2.75″ flange assembly
      •

    •
  • 2.75″ ConFlat flange mounting
    •
  • Gas recovery port with QF50 flange connection
    •
