Description Low Pressure Burst Disk CF275 Flange w/ CF338 Gas Recovery Port
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

BD-LP-CF275XCF338-GRP

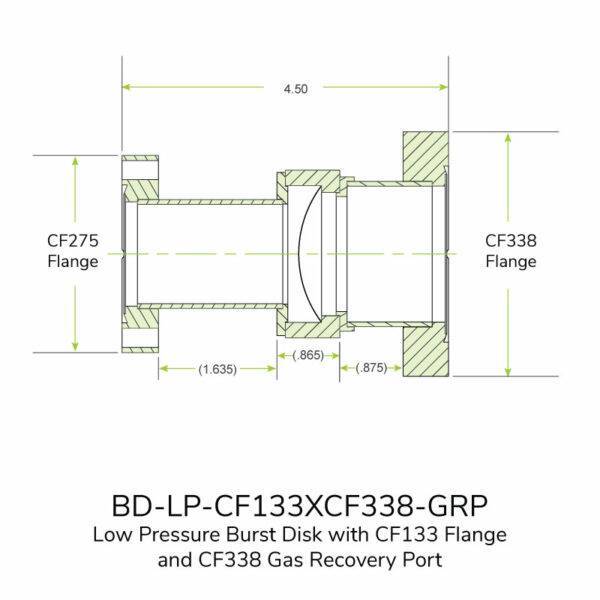

Low Pressure Burst Disk CF275 Flange w/ CF338 Gas Recovery Port

$725.00

Available on backorder

Part ID: 9100040

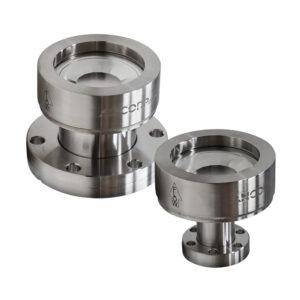

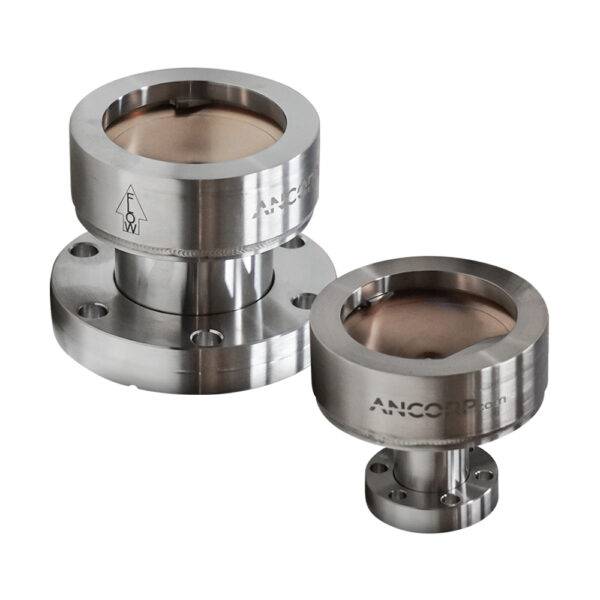

ANCORP’s low-pressure burst disk protects against over-pressurization of high and ultra-high vacuum (UHV) systems.

Features

  • Pressure relief ranges 5 to 7 PSIG
  • UHV-compatible all-metal construction

Specifications

  • Bakeable to 450°C
  • ISO 4126-2 compliant
  • Leak tight to 2 x 10-10 std. cc/sec of Helium
  • Calculated Flow rates
    • 435 SCFM on 2.75″ flange assembly
  • 2.75″ ConFlat flange mounting
  • Gas recovery port with CF338 flange connection
