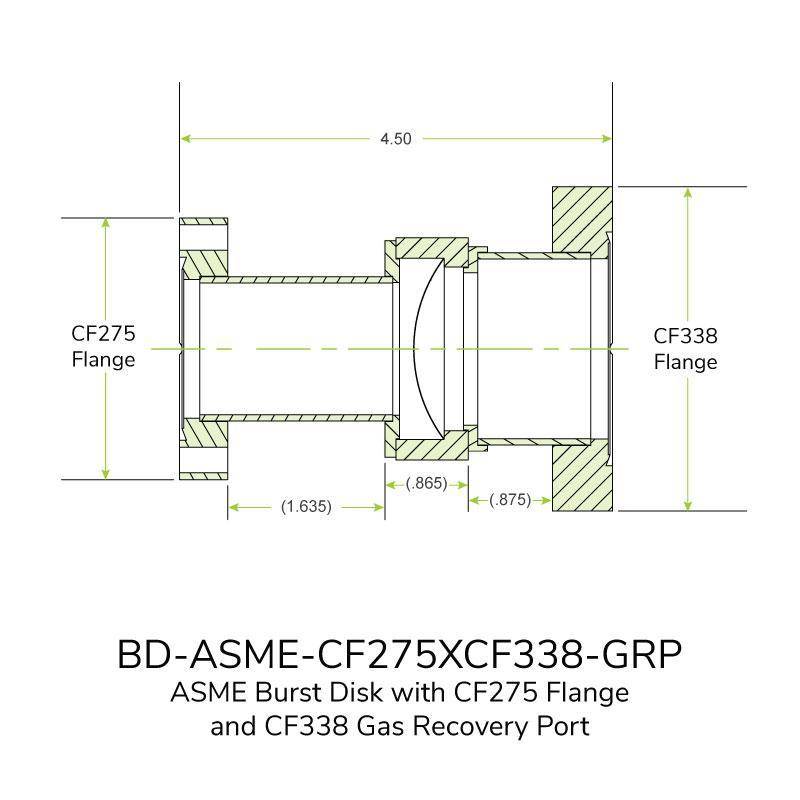

BD-ASME-CF275XCF338-GRP
ASME Burst Disk CF275 (DN 40) Flange w/ CF338 (DN 50) Gas Recovery Port
$725.00
Part ID: 9100036

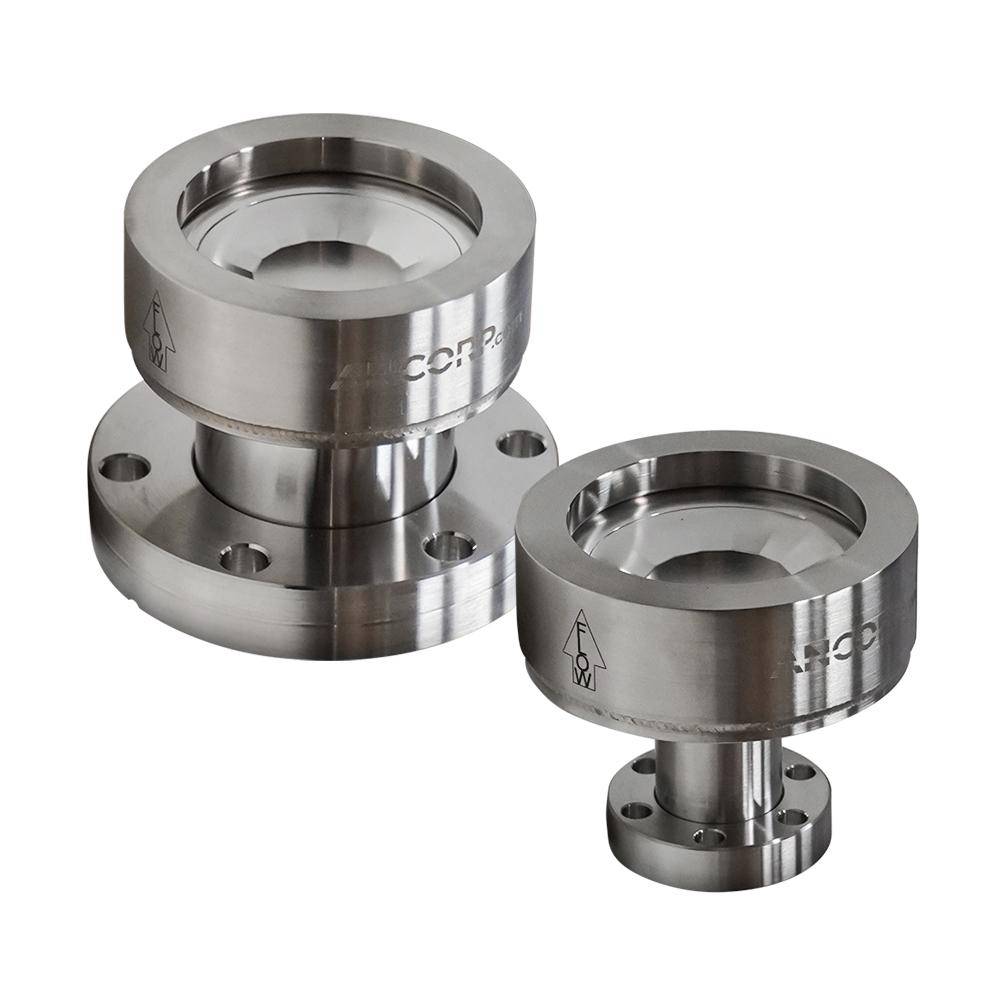

ANCORP’s ASME Overpressure burst disk protects against over pressurization of high and ultra-high vacuum (UHV) systems.
Features
- Pressure relief range 9 to 11.5 PSIG
- UHV Compatible all-metal construction
Specifications
- Bakeable to 450°C
- ASME UD certified
- 10CFR851 compliant
- Leak tight to 2 x 10-10 std. cc/sec of Helium
- Calculated Flow rates
- 435 SCFM on 2.75″ flange assembly
- Gas recovery port with CF338 flange connection
Accordion #1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Accordion #2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
All dimensions are in inches unless otherwise specified.
