Description Low Pressure Burst Disk CF133 Flange w/ QF50 Gas Recovery Port
3D CADLogin
DrawingLogin

BD-LP-CF133XQF50-GRP

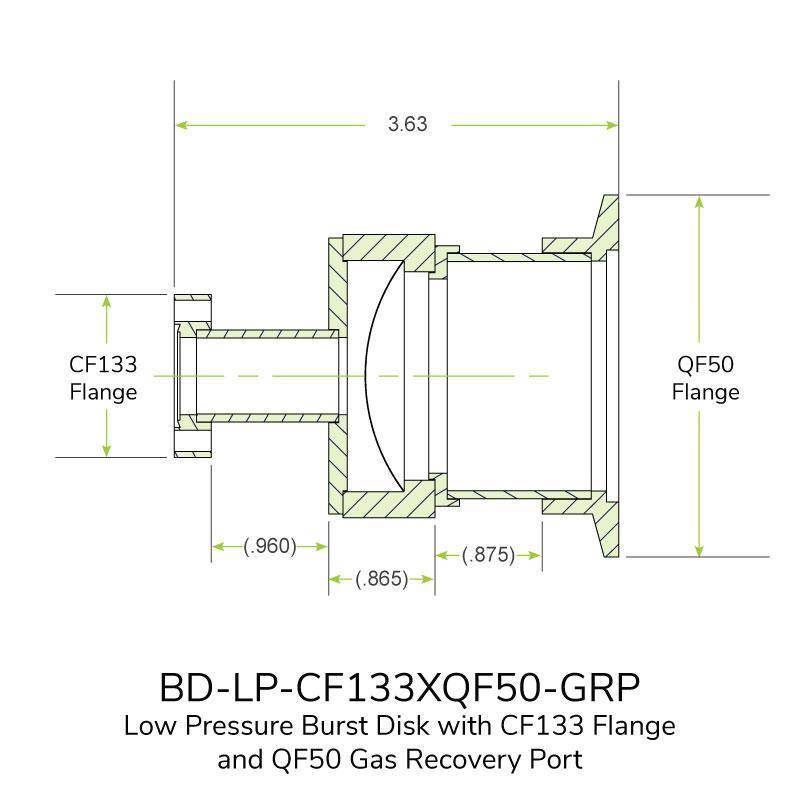

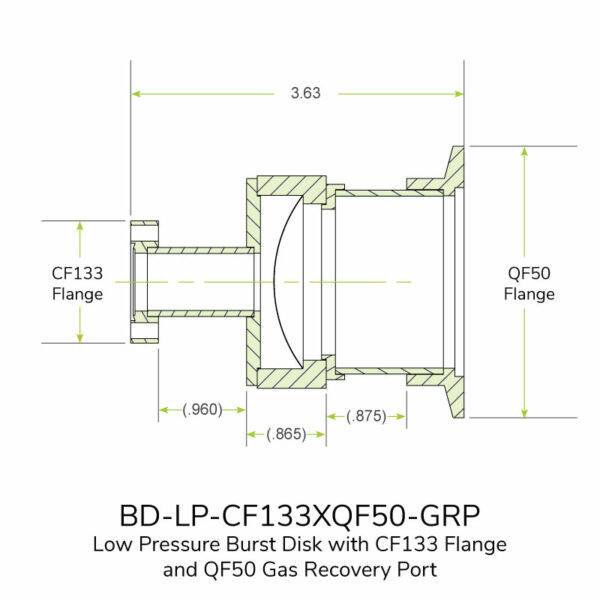

Low Pressure Burst Disk CF133 Flange w/ QF50 Gas Recovery Port

$695.00

Available on backorder

Part ID: 9100039

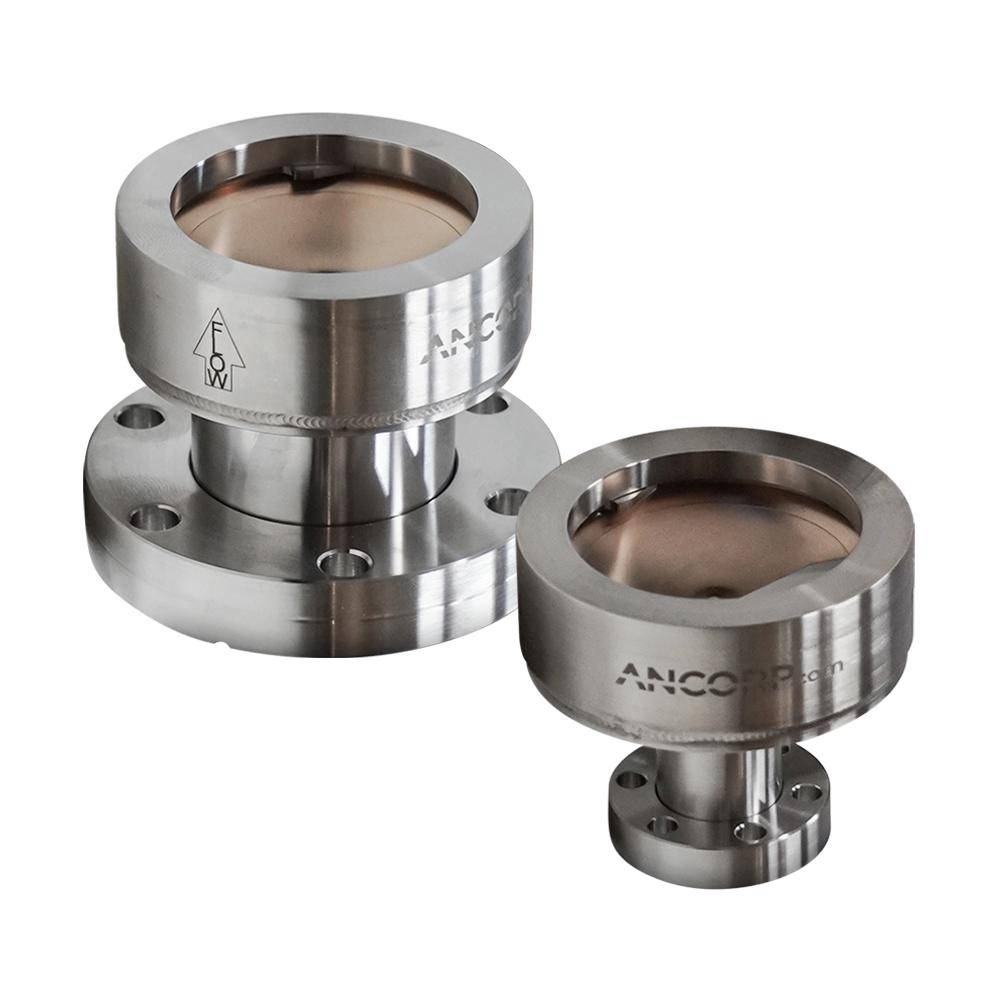

ANCORP’s low-pressure burst disk protects against over-pressurization of high and ultra-high vacuum (UHV) systems.


Features



  • Pressure relief ranges 5 to 7 PSIG
    •
  • UHV-compatible all-metal construction
    •




Specifications



  • Bakeable to 450°C
    •
  • ISO 4126-2 compliant
    •
  • Leak tight to 2 x 10-10 std. cc/sec of Helium
    •
  • Calculated Flow rates

    • 107 SCFM on 1.33″ flange assembly
      •

    •






  • Gas recovery port with QF50 flange connection
    •
