Attributes

Description 25 PSIG Burst Disk CF133 Flange
3D CADLogin
DrawingLogin

BD-05025PSIG-CF133

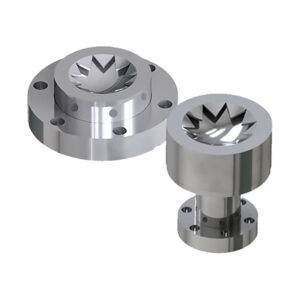

CF133 High Pressure Burst Disk

$250.00

Available on backorder

Part ID: 9100043







ANCORP’s high-pressure burst disk protects against over-pressurization of high and ultra-high vacuum (UHV) systems up to 25PSIG.


Features



  • Pressure relief between 0 and 25PSIG for general use
    •
  • UHV Compatible all-metal construction
    •
  • 1.33″ ConFlat flange mounting
    •




Specifications



  • Temperature range: -200°C to 350°C
    •
  • Vacuum Rated:

    • Elastomer Seals 1 x 10-8
      •
    • Copper Seals 1 x 10-13
      •

    •
  • Leak tight to 2 x 10-10 std. cc/sec of Helium
    •
