REPRESENTATIVE IMAGE

Attributes

Description 25 PSIG Burst Disk CF275 Flange
3D CADLogin
DrawingLogin

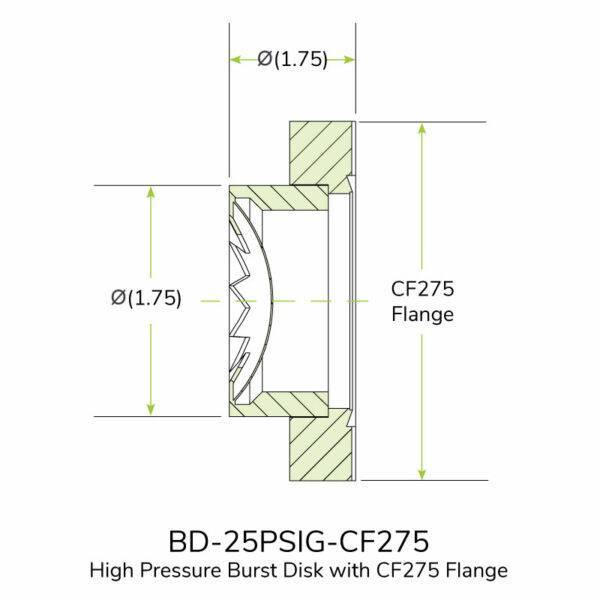

All dimensions are in inches unless otherwise specified.

BD-05025PSIG-CF275

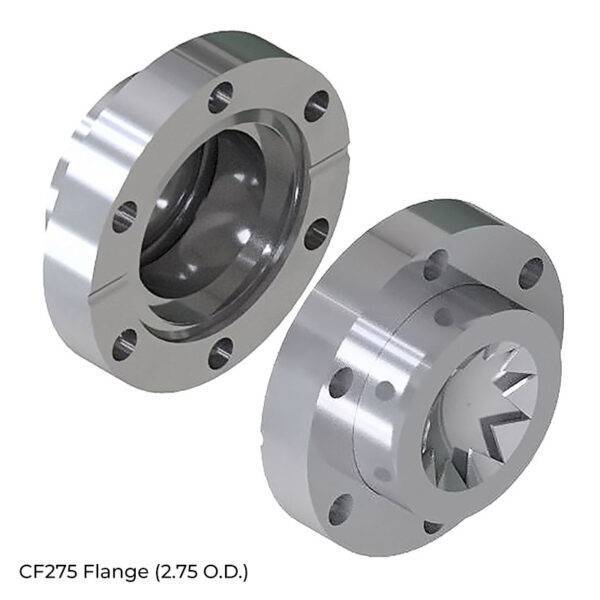

CF275 (DN 40) High Pressure Burst Disk

Part ID: 9100042


















$250.00



















































			Standard Lead Time:

Contact
















































Available on backorder

















































ANCORP’s high-pressure burst disk protects against over-pressurization of high and ultra-high vacuum (UHV) systems up to 25PSIG.




Features






  • Pressure relief between 0 and 25PSIG for general use
    •

  • UHV Compatible all-metal construction
    •

  • 2.75″ ConFlat flange mounting
    •









Specifications






  • Temperature range:  -200°C to 350°C
    •

  • Vacuum Rated:



    • Elastomer Seals 1 x 10-8
      •

    • Copper Seals 1 x 10-13
      •



    •

  • Leak tight to 2 x 10-10 std. cc/sec of Helium
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    Description 25 PSIG Burst Disk CF275 Flange



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
