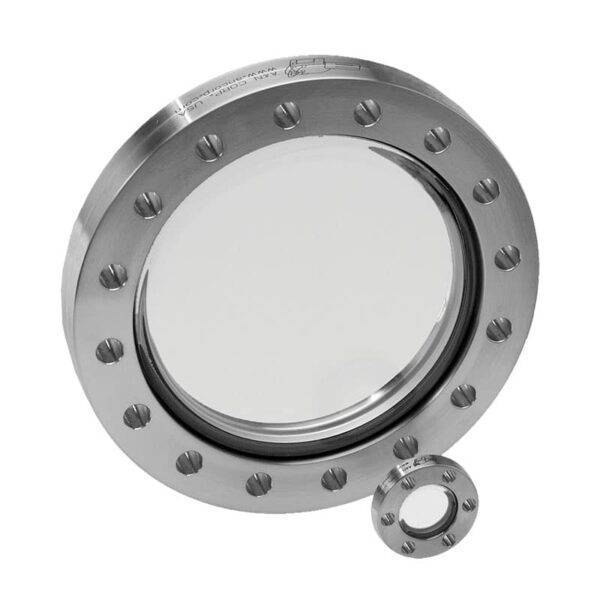

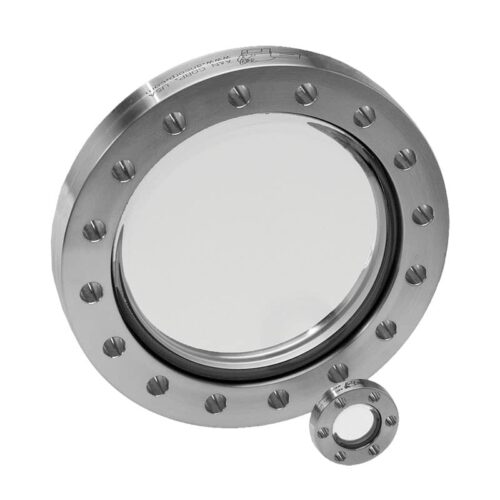

REPRESENTATIVE IMAGE

Attributes

Description CF462 Zero-Length Glass Viewport
Flange Size 4.62

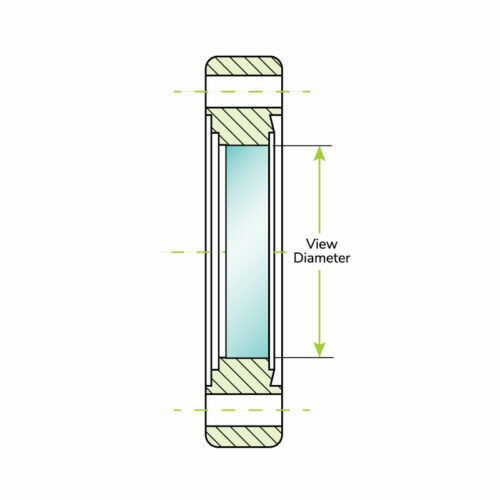

View Diameter 2.670
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF462-ZLVP-2.670

Zero-Length Kodial 7056 Borosilicate Glass Viewport with 4.62 in. (DN 75) ConFlat Flange

Part ID: 9110030


















$652.00



















































			Standard Lead Time:

Contact
















































Available on backorder

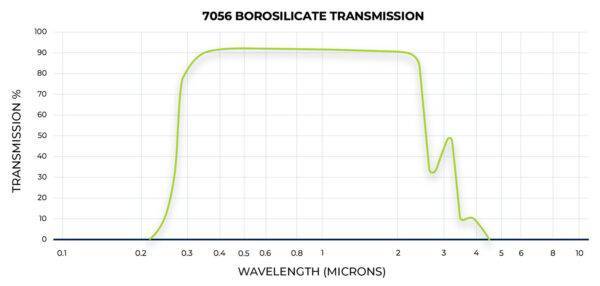

Kodial 7056 borosilicate glass viewports are excellent general-purpose windows for observation within a vacuum chamber. Borosilicate glass has a low coefficient of thermal expansion and has high transmission in the visible range.




Features






  • Vacuum rating of 1×10-10 torr
    •

  • Maximum temperature: 350°C
    •

  • Minimum temperature: -20°C
    •









Specifications






  • Max Rate of Temperature Change: 3°C per minute
    •

  • Do not expose to pressure above 1 atmosphere
    •

  • Materials:
    •





  • Flange material is 304L stainless steel
    •

  •  Viewing window is Kodial 7056 borosilicate glass
    •

  • Transition material is Kovar
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    Description CF462 Zero-Length Glass Viewport



                    Flange Size 4.62



                    View Diameter 2.670



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
