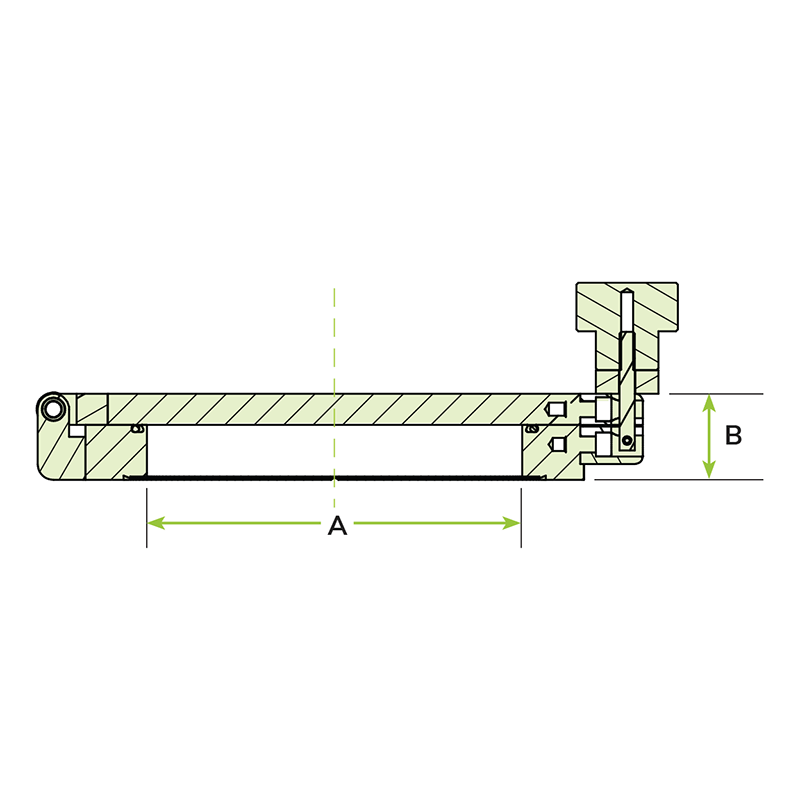

REPRESENTATIVE IMAGE

Attributes

A 7.88
B 1.47
Flange CF1000
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1000-AD

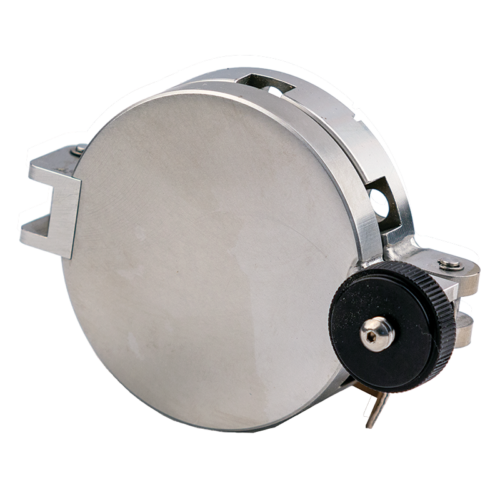

CF1000 (DN 200) Add a Door, 7.88 in. ID

Request a Quote for Price

Part ID: 9110105











Features






  • High Vacuum rating of 1×10-8 torr
    •

  •  Temperature maximum of 150°C
    •

  • Do not expose to pressure above 1 atmosphere
    •









Specifications






  •  Materials:
    •





  •  Body: 304L Stainless Steel
    •

  •  Seal: FKM
    •

  •  Viewing Window: 7056 Borosilicate Glass
    •

  •  Fastening Knob: Aluminum
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 7.88



                    B 1.47



                    Flange CF1000



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
