REPRESENTATIVE IMAGE

Attributes

A 4.02
B 2.16
Flange CF600
Window Material 7056 Glass
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF600-ADVP-3.8

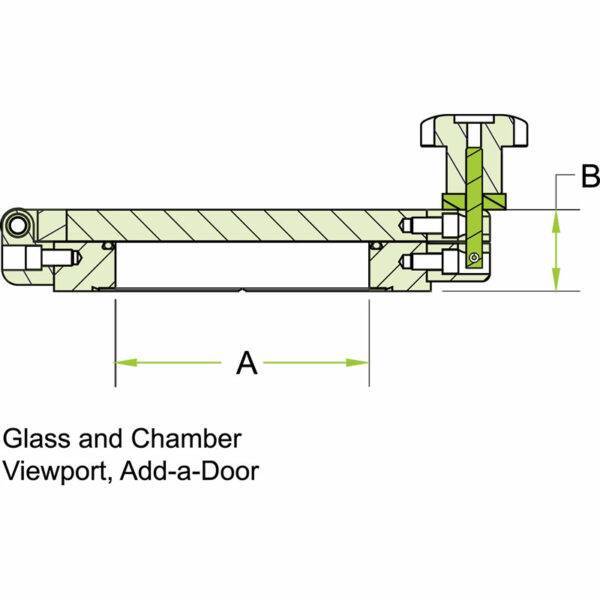

CF600 (DN 100) Viewport Door 7056 Borosilicate Glass

Part ID: 9110222


















$0.00





































			Standard Lead Time:

Contact
















































Available on backorder


















































For those requiring both a viewing window and an access point within their system, our Viewport Add-A-Doors offer a dual-purpose solution. These doors seamlessly combine functionality as an observation window and a convenient access entry.




Features






  • High Vacuum rating of 1×10-8 torr
    •

  •  Temperature maximum of 150°C
    •

  • Avoid thermal changes in excess of 10°C/minute
    •

  • Do not expose to pressure above 1 atmosphere
    •









Specifications






  •  Materials:
    •





  •  Body: 304L Stainless Steel
    •

  •  Seal: FKM
    •

  •  Viewing Window: 7056 Borosilicate Glass
    •

  •  Fastening Knob: Aluminum
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 4.02



                    B 2.16



                    Flange CF600



                    Window Material 7056 Glass



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
