REPRESENTATIVE IMAGE

Attributes

A 0.472
B 7.09
Description ISO LF160 Zero-Length Glass Viewport
View Diameter 3.504
3D CADLogin
DrawingLogin
TESTNAME 0.787

All dimensions are in inches unless otherwise specified.

LF160-ZLVP-3.504

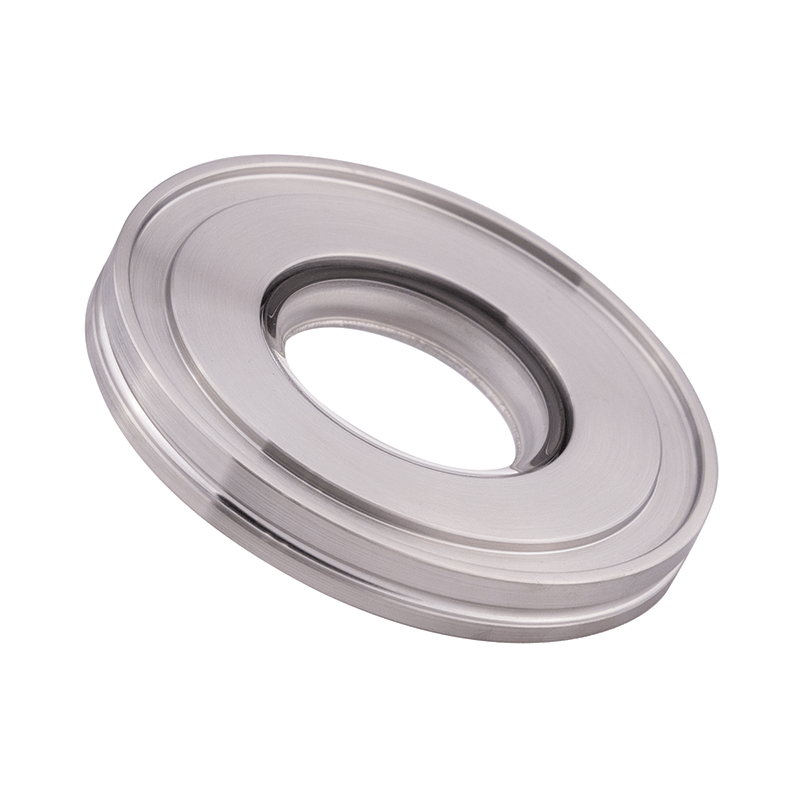

ISO LF160 Zero-Length Kodial 7056 Borosilicate Glass Viewport

Part ID: 9110505


















$454.00





































			Standard Lead Time:

Contact
















































Available on backorder


















































Kodial 7056 borosilicate glass viewports are excellent general-purpose windows for observation within a vacuum chamber. Borosilicate glass has a low coefficient of thermal expansion and has high transmission in the visible range.




Features






  • Vacuum rating of 1×10-10 torr
    •

  • Maximum temperature: 150°C
    •









Specifications






  • Max Rate of Temperature Change: 3°C per minute
    •

  • Do not expose to pressure above 1 atmosphere
    •

  • Materials:
    •





  • Flange material is 304L stainless steel
    •

  •  Viewing window is Kodial 7056 borosilicate glass
    •

  • Transition material is Kovar
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 0.472



                    B 7.09



                    Description ISO LF160 Zero-Length Glass Viewport



                    View Diameter 3.504



                    3D CADLogin



                    DrawingLogin







                    TESTNAME 0.787

















All dimensions are in inches unless otherwise specified.
