REPRESENTATIVE IMAGE

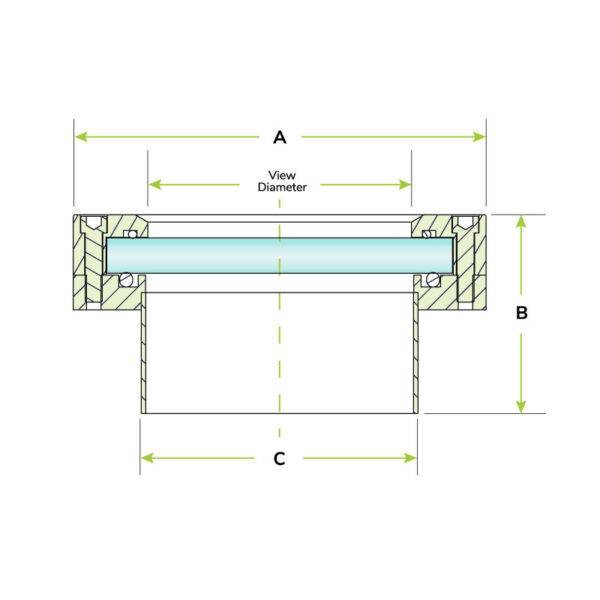

Attributes

A 4.47
B 2.88
C 2.5
Description 2.5 in. Weldable Quartz Viewport
View Diameter 2.38
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

250-WVP-2.50-Q

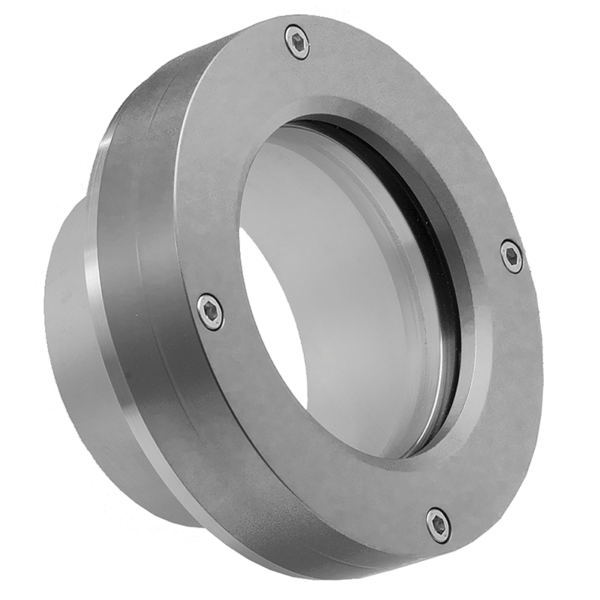

2.5″ Weldable Quartz Viewport

Part ID: 9118005


















$550.00



















































			Standard Lead Time:

Contact
















































Available on backorder



















































Features






  • High Vacuum rating of 1×10-8 torr
    •

  •  Thermal range: -100°C to 150°C
    •

  • Avoid thermal changes in excess of 10°C/minute
    •

  • Do not expose to pressure above 1 atmosphere
    •









Specifications






  •  Materials:
    •





  •  Body: 304L Stainless Steel
    •

  •  Seal: FKM
    •

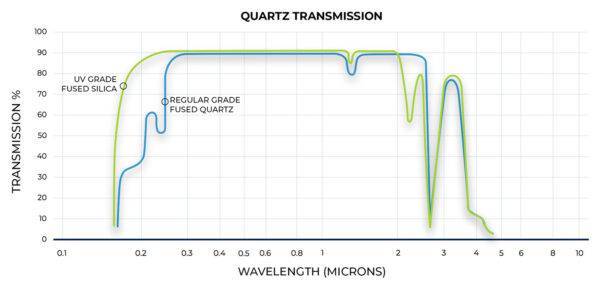

  •  Viewing Window: regular grade fused quartz
    •

  •  Retaining Flange: Aluminum
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 4.47



                    B 2.88



                    C 2.5



                    Description 2.5 in. Weldable Quartz Viewport



                    View Diameter 2.38



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
