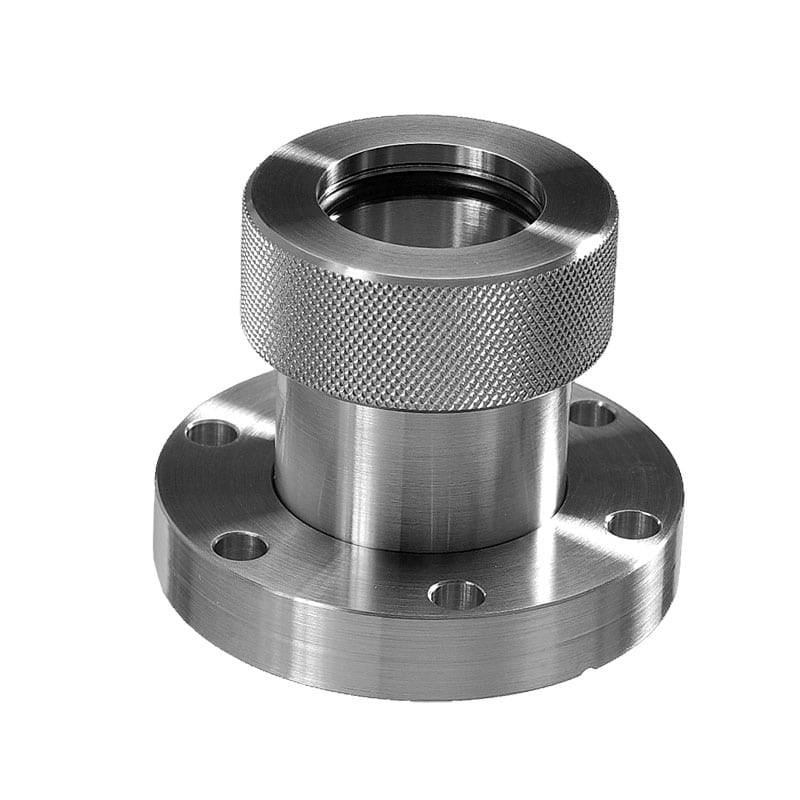

Quick Disconnect to CF

Features

  • High vacuum rating
  • Adapts from Quick Disconnect fitting to CF flange
  • Convenient for mounting gauges, instruments, or adding tube ports without welds

Specifications

  • Materials:
    • Flange: 304L Stainless Steel
    • Fitting: 304 Stainless Steel

*Dimensions are in inches unless otherwise specified

Part IDReference NumberA B C 3D CADDrawingUnit PriceIn StockQty, Add To Cart
Part ID5000596Reference NumberCF133XQD06-1.36A 1.33B 1/16 in.C 1.363D CADLoginDrawingLoginUnit Price$116.00Contact
Part ID5000597Reference NumberCF133XQD12-1.36A 1.33B 1/8 in.C 1.363D CADLoginDrawingLoginUnit Price$145.00Contact
Part ID5000598Reference NumberCF133XQD18-1.36A 1.33B 3/16 in.C 1.363D CADLoginDrawingLoginUnit Price$130.00Contact
Part ID5000599Reference NumberCF133XQD25-1.31A 1.33B 1/4 in.C 1.3123D CADLoginDrawingLoginUnit Price$112.003
Part ID5000600Reference NumberCF133XQD31-1.38A 1.33B 5/16 in.C 1.363D CADLoginDrawingLoginUnit Price$112.00Contact
Part ID5000601Reference NumberCF133XQD38-1.36A 1.33B 3/8 in.C 1.363D CADLoginDrawingLoginUnit Price$112.00Contact
Part ID5000602Reference NumberCF133XQD50-1.38A 1.33B 1/2 in.C 1.383D CADLoginDrawingLoginUnit Price$115.00Contact
Part ID5000603Reference NumberCF133XQD62-1.47A 1.33B 5/8 in.C 1.4713D CADLoginDrawingLoginUnit Price$121.00Contact
Part ID5000604Reference NumberCF275XQD06-1.31A 2.75B 1/16 in.C 1.3123D CADLoginDrawingLoginUnit Price$136.00Contact
Part ID5000614Reference NumberCF275XQD100-2.0A 2.75B 1.00 in.C 23D CADLoginDrawingLoginUnit Price$142.00Contact
Part ID5000615Reference NumberCF275XQD112-2.0A 2.75B 1 1/8 in.C 23D CADLoginDrawingLoginUnit Price$146.00Contact
Part ID5000605Reference NumberCF275XQD12-1.4A 2.75B 1/8 in.C 1.43D CADLoginDrawingLoginUnit Price$107.001
Part ID5000616Reference NumberCF275XQD125-2.21A 2.75B 1 1/4 in.C 2.213D CADLoginDrawingLoginUnit Price$157.009
Part ID5000617Reference NumberCF275XQD138-2.72A 2.75B 1 3/8 in.C 2.343D CADLoginDrawingLoginUnit Price$175.00Contact
Part ID5000618Reference NumberCF275XQD150-2.5A 2.75B 1 1/2 in.C 2.53D CADLoginDrawingLoginUnit Price$186.00Contact
Part ID5000606Reference NumberCF275XQD18-1.36A 2.75B 3/16 in.C 1.363D CADLoginDrawingLoginUnit Price$107.00Contact
Part ID5000607Reference NumberCF275XQD25-1.31A 2.75B 1/4 in.C 1.3123D CADLoginDrawingLoginUnit Price$107.00Contact
Part ID5000608Reference NumberCF275XQD31-1.36A 2.75B 5/16 in.C 1.363D CADLoginDrawingLoginUnit Price$107.00Contact
Part ID5000609Reference NumberCF275XQD38-1.36A 2.75B 3/8 in.C 1.363D CADLoginDrawingLoginUnit Price$107.00Contact
Part ID5000610Reference NumberCF275XQD50-1.38A 2.75B 1/2 in.C 1.383D CADLoginDrawingLoginUnit Price$112.00Contact
Part ID5000611Reference NumberCF275XQD62-1.5A 2.75B 5/8 in.C 1.53D CADLoginDrawingLoginUnit Price$130.00Contact
Part ID5000612Reference NumberCF275XQD75-1.63A 2.75B 3/4 in.C 1.6253D CADLoginDrawingLoginUnit Price$130.00Contact
Part ID5000613Reference NumberCF275XQD87-1.58A 2.75B 7/8 in.C 1.843D CADLoginDrawingLoginUnit Price$136.00Contact
