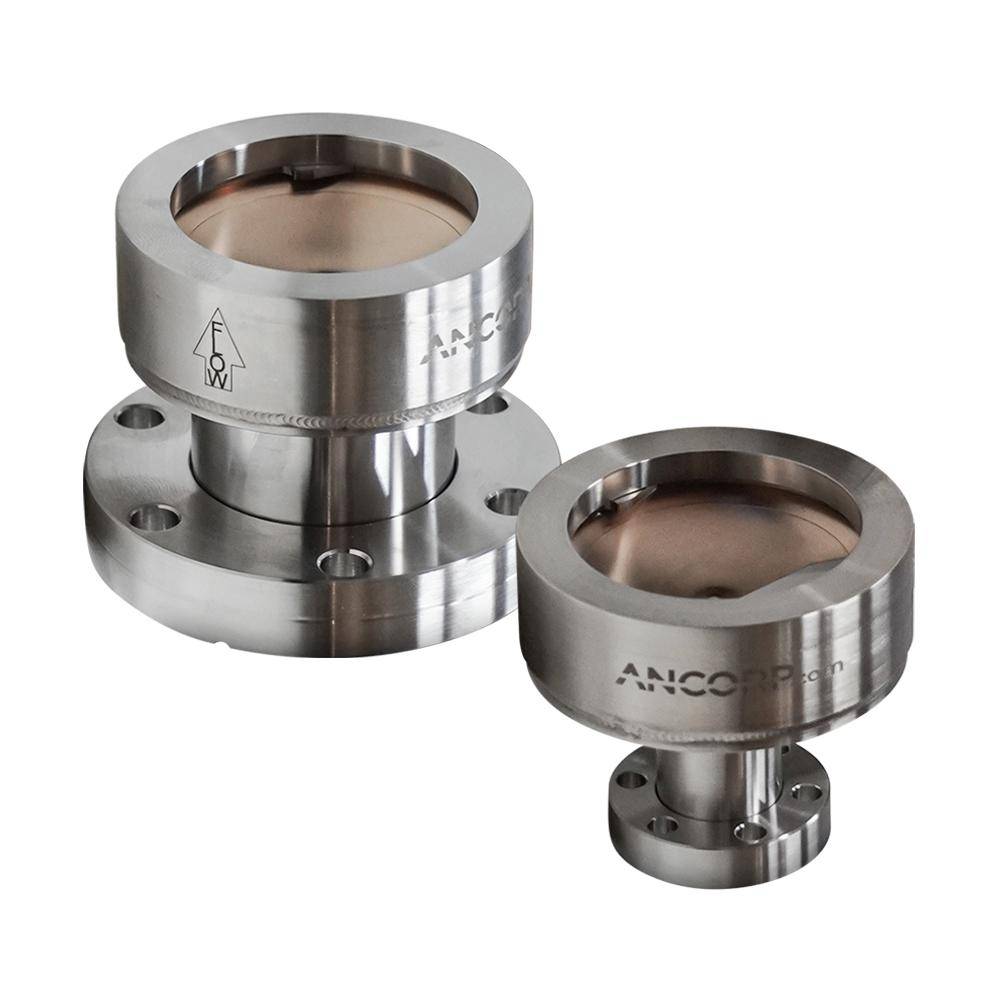

Low Pressure Burst Disks (5-7 PSIG)

ANCORP’s low pressure burst disk protects against over pressurization of high and ultra-high vacuum (UHV) systems.



  • Pressure relief range 5 to 7 PSIG
  • UHV Compatible all-metal construction
  • Bakeable to 450°C
  • 1.33″ or 2.75″ ConFlat flange mounting
  • Gas recovery port options available with QF50 or CF338 flange connection
  • ISO 4126-2 compliant
  • Leak tight to 2 x 10-10 std. cc/sec of Helium
  • Calculated Flow rates
    • 107 SCFM on 1.33″ flange assembly
    • 435 SCFM on 2.75″ flange assembly

*Dimensions are in inches unless otherwise specified

Part IDReference NumberDescription 3D CADDrawingUnit PriceQty, Add To Cart
Part ID9100032Reference NumberBD-LP-CF133Description Low Pressure Burst Disk CF133 Flange3D CADLoginDrawingLoginUnit Price$595.00
Part ID9100038Reference NumberBD-LP-CF133XCF338-GRPDescription Low Pressure Burst Disk CF133 Flange w/ CF338 Gas Recovery Port3D CADLoginDrawingLoginUnit Price$695.00
Part ID9100039Reference NumberBD-LP-CF133XQF50-GRPDescription Low Pressure Burst Disk CF133 Flange w/ QF50 Gas Recovery Port3D CADLoginDrawingLoginUnit Price$695.00
Part ID9100033Reference NumberBD-LP-CF275Description Low Pressure Burst Disk CF275 Flange3D CADLoginDrawingLoginUnit Price$625.00
Part ID9100040Reference NumberBD-LP-CF275XCF338-GRPDescription Low Pressure Burst Disk CF275 Flange w/ CF338 Gas Recovery Port3D CADLoginDrawingLoginUnit Price$725.00
Part ID9100041Reference NumberBD-LP-CF275XQF50-GRPDescription Low Pressure Burst Disk CF275 Flange w/ QF50 Gas Recovery Port3D CADLoginDrawingLoginUnit Price$725.00
